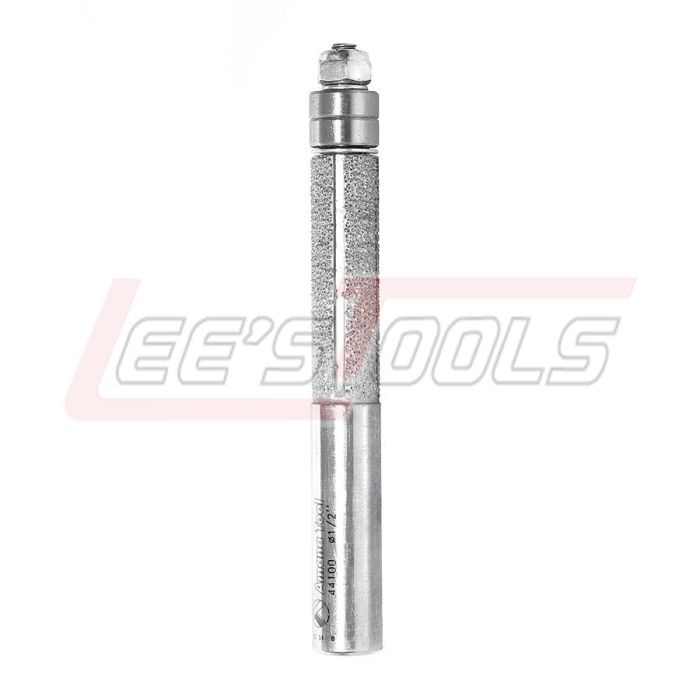

AMANA TOOL 44100 DIAMOND,FIBERGLASS FLUSH TRIM
$139.58
In stock
SKU
33913
Diamond coated
Fiberglass & Carbonfiber Material Flush Trim Router Bits
Extended tool life
We are manufacturing this tool with a special diamond
coating process which resulting in longer tool life than the electro-plated
brazing method.
Diamond grit size is D427 (µm) / 40# (Mesh).
Used in the boat and RV industry to trim laminated
fiberglass boards. Cuts fast and clean.
|
D |
B |
d |
L |
Tool No. |
|
1/2 |
1-3/4 |
1/2 |
4-1/4 |
44100 |
Replacement Bearing #47706 (2)
Replacement Nut #67086
Max RPM Guide for
Amana Tool® Router Bits
Do not exceed the
maximum RPM shown for the particular tool you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also
refer to laser etching on router bit shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 44100 |
