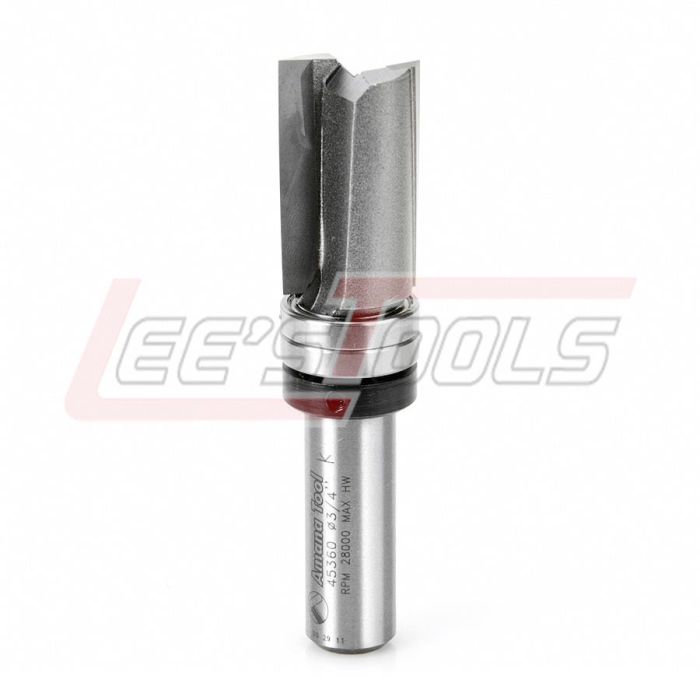

AMANA TOOL 45360 PLUNGE 3/4 DIA UPPER BB 1/2SHK
$48.19
In stock
SKU
34037
Down Shear Face Plunge Template Router Bits with Upper Ball Bearing
2 Flute
The shear face cuts faster, cleaner and lasts longer than straight
face because of the chip removal speed. We recommend using shear face in most
instances especially where large diameters are used.
|
D |
B |
d |
L |
Replacement Bearing |
Replacement Collar |
Tool No. |
|
3/4 |
1-1/4 |
1/2 |
3-1/4 |
47721 |
47739 |
45360 |
|
3/4 |
2 |
1/2 |
4 |
47721 |
47739 |
45364 |
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool you are
using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router
Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note:
Please also refer to laser etching on router bit shank for most updated RPM
speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 45360 |
