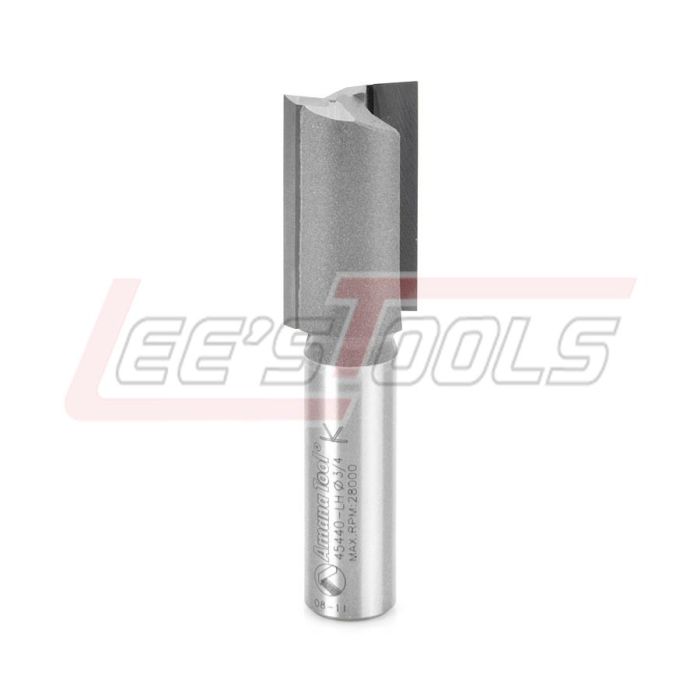

AMANA TOOL 45440-LH 2 FLUTE 3/4 DIA 1/2 SHANK L/H
$46.16
Out of stock
SKU
34108
Left Hand PlungeRouter Bits
2 Flute - 1/2"
Shank
This special series of
plunging straight bits is for reverse-rotation (counter-clockwise) routers.
|
D |
B |
d |
L |
Tool No. |
|
5/16 |
1 |
1/2 |
2-3/4 |
45412-LH |
|
3/8 |
1 |
1/2 |
2-3/4 |
45414-LH |
|
7/16 |
1-1/4 |
1/2 |
3 |
45416-LH |
|
1/2 |
1-1/4 |
1/2 |
2-7/8 |
45420-LH |
|
1/2 |
1-1/2 |
1/2 |
3-1/8 |
45422-LH |
|
1/2 |
2 |
1/2 |
4-1/4 |
45426-LH |
|
9/16 |
1-1/4 |
1/2 |
3 |
45428-LH |
|
5/8 |
1-1/4 |
1/2 |
2-7/8 |
45432-LH |
|
3/4 |
1-1/4 |
1/2 |
2-7/8 |
45440-LH |
|
3/4 |
2 |
1/2 |
3-5/8 |
45441-LH |
|
7/8 |
1-1/4 |
1/2 |
2-7/8 |
45446-LH |
NOTE: CAN BE USED IN ALL
HANDHELD AND TABLE-MOUNTED ROUTERS
Note: Please
also refer to laser etching on router bit shank for most updated RPM speed
rating.
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
| Availability | Out of Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 45440-LH |
