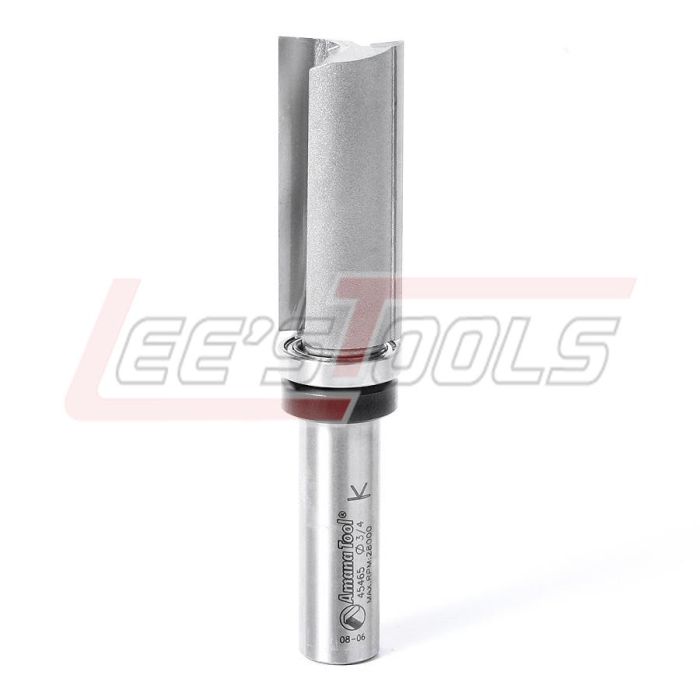

AMANA TOOL 45465 PLUNGE 3/4 DIA UPPER BB 1/2SHK
$66.94
In stock
SKU
34151
Flush Trim Template /Pattern Plunge Router Bits
2 Flute
This bit is essentially a
plunge-cutting straight with ashank-mounted ball-bearing pilot. It is a
versatile bit, useful fortemplate/pattern routing of parts, joints, and internal
cuts, and can be usedin handheld and table-mounted routers. The template is
attached to the workpiece,and the pilot bearing rides along its edge as the
cutting edges rout theworkpiece, forming an exact duplicate of the template.
With a handheld router,the pattern is on top of the work; with a table-mounted
router, the pattern isunderneath the work.
|
D |
B |
d |
L |
Replacement
Bearing |
Replacement
Collar |
Tool No. |
|
|
3/16 |
1/2 |
1/8 |
2 |
47775 |
--- |
47220* |
|
|
3/16 |
1/2 |
1/4 |
2 |
47775 |
--- |
47222* |
|
|
1/4 |
3/4 |
1/4 |
2-7/16 |
47723 |
--- |
47224* |
|
|
3/8 |
1/2 |
1/4 |
2 |
47751(2) |
47724 |
45475† |
|
|
3/8 |
1 |
1/2 |
3-1/4 |
47751 |
--- |
47226 |
|
|
1/2 |
3/8 |
1/4 |
2-1/4 |
47701 |
47724 |
45481** |
|
|
1/2 |
1/2 |
1/4 |
2 |
47701 |
47724 |
45487 |
|
|
1/2 |
3/4 |
1/4 |
2-1/4 |
47701 |
47724 |
45491 |
|
|
1/2 |
1 |
1/4 |
2-1/2 |
47701 |
47724 |
45460 |
|
|
1/2 |
1-1/4 |
1/4 |
2-3/4 |
47701 |
47724 |
45461 |
|
|
1/2 |
1-1/4 |
1/2 |
3-1/2 |
47701 |
--- |
47228 |
|
|
5/8 |
1 |
1/4 |
2-3/4 |
47712 |
47724 |
45462 |
|
|
5/8 |
1/2 |
1/4 |
2-1/4 |
47712 |
47724 |
45482 |
|
|
5/8 |
3/4 |
1/4 |
2-1/2 |
47712 |
47724 |
45483 |
|
|
3/4 |
3/4 |
1/4 |
2-3/8 |
47714 |
47724 |
45485 |
|
|
3/4 |
1 |
1/4 |
2-1/2 |
47714 |
47724 |
45464 |
|
|
7/8 |
1 |
3/8 |
2-5/8 |
47741 |
47730 |
45499 |
|
|
1 |
1 |
3/8 |
2-7/8 |
47722 |
47730 |
45466 |
|
|
3/4 |
1 |
1/2 |
3 |
47721 |
47739 |
45463 |
|
|
3/4 |
1-1/4 |
1/2 |
3-1/4 |
47721 |
47739 |
45360+ |
|
|
3/4 |
1-1/2 |
1/2 |
3-1/2 |
47721 |
47739 |
45362+ |
|
|
3/4 |
1-3/4 |
1/2 |
3-3/4 |
47721 |
47739 |
45465 |
|
|
3/4 |
2 |
1/2 |
4 |
47721 |
47739 |
45364+ |
|
|
20! |
1 |
1-3/4 |
1/2 |
3-3/4 |
47754 |
47739 |
45467 |
|
1-1/8 |
1 |
1/2 |
3 |
47738 |
47740 |
45550 |
|
|
20! |
1-1/8 |
1-1/2 |
1/2 |
3-1/2 |
47738 |
47740 |
45468 |
Warning: Maximum RPM 20!
= 20,000
ATTENTION!
*47220, 47222 & 47224
reduce RPM & Feed Rates (IPM) by 30-50% to prevent tool breakage due to
extremely small diameter (D). Bits are not guaranteed due to extremely small
diameter.
** For use on hardwood and
flooring medallions.
† Double Bearing
+DownShear Angle
- The shear angle cuts faster, cleaner and lasts longer than straight angle
because of the chip removal speed.
We recommend using shear
angle in most instances especially where large diameters are used.
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also
refer to laser etching on router bit shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 45465 |
