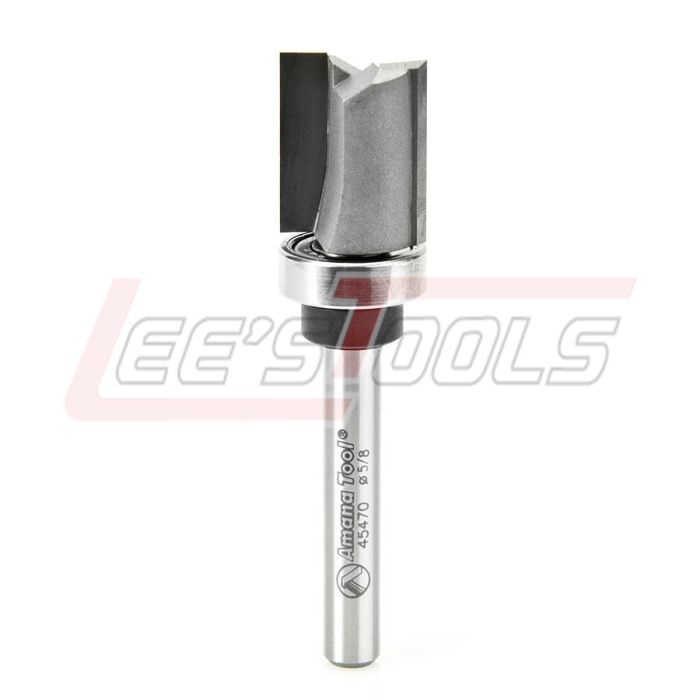

AMANA TOOL 45470 PLUNGE BIT W/ UPPER BALL BRG.
$22.13
Out of stock
SKU
34160
Keller Dovetail System Router Bits
2 Flute
The popular Keller Templates require the use of straight
and dovetail bits with shank mounted pilot bearings. The following bit are
designed specifically for use in the Keller system.
Straight Cutter with Upper Ball Bearing
|
Keller No. |
D |
B |
d |
Bearing |
L |
Tool No. |
|
1641 |
5/8 |
1/2 |
1/4 |
47712 |
2-1/4 |
45469 |
|
1643/2443 |
5/8 |
3/4 |
1/4 |
47712 |
2-5/8 |
45470 |
|
2445/3645 |
7/8 |
1 |
3/8 |
46641 |
2-5/8 |
45471 |
7° Dovetail Bit System w/Upper Ball Bearing
|
Keller No. |
D |
B |
d |
Bearing |
L |
Tool No. |
|
1631 |
11/32 |
3/8 |
1/4 |
47712 |
2-1/4 |
45880 |
|
1633 |
7/16 |
3/4 |
1/4 |
47712 |
2-5/8 |
45882 |
|
2435 |
5/8 |
1 |
3/8 |
46641 |
2-5/8 |
45884 |
7° Keller Set 1601 Pro Series & 1500 Journeyman Standard Bit Set w/Upper
Ball Bearing
|
Keller No. |
D |
B |
d |
L |
Bearing |
Type |
Tool No. |
|
1633 |
7/16 |
3/4 |
1/4 |
2-5/8 |
47712 |
Dovetail |
45882 |
|
1643 |
5/8 |
3/4 |
1/4 |
2-5/8 |
47712 |
Straight |
45470 |
7° Dovetail Small Bit Set w/Upper Ball Bearing
|
Keller No. |
D |
B |
d |
L |
Bearing |
Type |
Tool No. |
|
1631 |
11/32 |
3/8 |
1/4 |
2-1/4 |
47712 |
Dovetail |
45880 |
|
1641 |
5/8 |
1/2 |
1/4 |
2-1/4 |
47712 |
Straight |
45469 |
7° Dovetail Model 2401 Pro Series & 2200 Journeyman w/Upper Ball Bearing
|
Keller No. |
D |
B |
d |
L |
Bearing |
Type |
Tool No. |
|
2435 |
5/8 |
1 |
3/8 |
2-5/8 |
47741 |
Dovetail |
45884 |
|
2445 |
7/8 |
1 |
3/8 |
2-5/8 |
47741 |
Straight |
45472 |
7° Dovetail Small Bit Set w/Upper Ball Bearing
|
Keller No. |
D |
B |
d |
L |
Bearing |
Type |
Tool No. |
|
2443 |
7/16 |
3/4 |
1/4 |
2-5/8 |
47735 |
Dovetail |
45888 |
|
1643/2443 |
5/8 |
3/4 |
1/4 |
2-5/8 |
47712 |
Straight |
45470 |
Model 3600 - 14° Dovetail w/Upper Ball Bearing Standard Bit Set
|
Keller No. |
D |
B |
d |
L |
Bearing |
Type |
Tool No. |
|
3637 |
1 |
1 |
1/2 |
2-3/4 |
47738 |
Dovetail |
45890 |
|
3645/2445 |
7/8 |
1 |
3/8 |
2-5/8 |
47741 |
Straight |
45472 |
Large Bit Set - 14° Dovetail w/Upper Ball Bearing
|
Keller No. |
D |
B |
d |
L |
Bearing |
Type |
Tool No. |
|
3649 |
7/8 |
1-1/4 |
3/8 |
2-7/8 |
47741 |
Straight |
45473 |
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on router bit
shank for most updated RPM speed rating.
| Availability | Out of Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 45470 |
