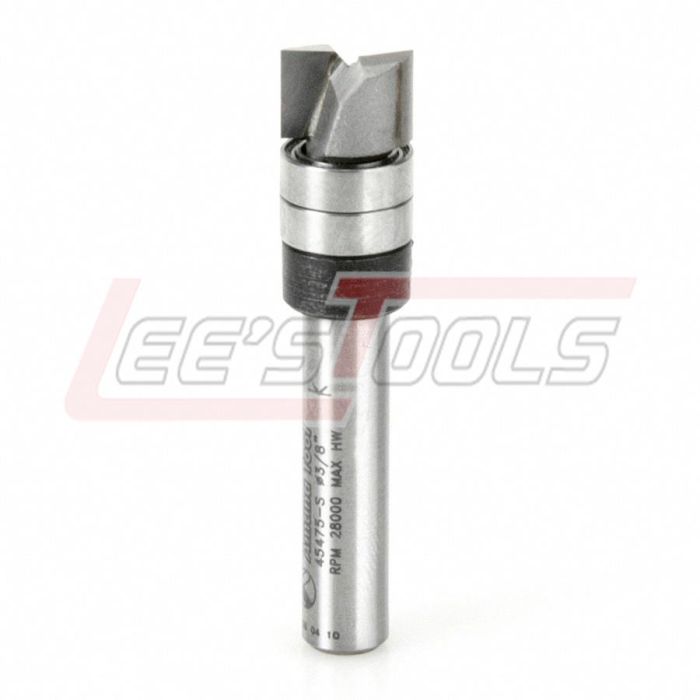

AMANA TOOL 45475-S PLUNGE 3/8" DIA. W/BBx 1/4"SHK
$26.06
In stock
SKU
34166
Dado Clean-Out Router Bits
2 Flute - 1/4" Shank
Bits designed with a 1/4" cutting edge for dado
clean-out. Also used in hardwood and flooring medallions.
|
D |
B |
d |
L |
Replacement Bearing |
Replacement Collar |
Tool No. |
|
3/8 |
1/4 |
1/4 |
1-3/4 |
47751(2) |
47724 |
45475-S† |
|
1/2 |
1/8 |
1/4 |
1-3/4 |
47701 |
47724 |
45489-S |
|
1/2 |
1/4 |
1/4 |
1-5/8 |
47701 |
47724 |
45460-S |
|
9/16 |
3/8 |
1/4 |
1-27/32 |
47753 |
47724 |
45474-S |
|
5/8 |
1/4 |
1/4 |
1-3/4 |
47712 |
47724 |
45462-S |
|
3/4 |
1/4 |
1/4 |
1-3/4 |
47714 |
47724 |
45464-S |
† Double Bearing
Max RPM Guide for
Amana Tool® Router Bits
Do not exceed the
maximum RPM shown for the particular tool you are using. Max RPM for symmetrical
tool only!
No exceda la
maxima velocidad (RPM) indicada para cada herramienta. Máximo RPM para la
herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer
to laser etching on router bit shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 45475-S |
