AMANA TOOL 45496 TEMPLATE/UPPER OVERSIZE BB 1/2
$35.85
In stock
SKU
34187

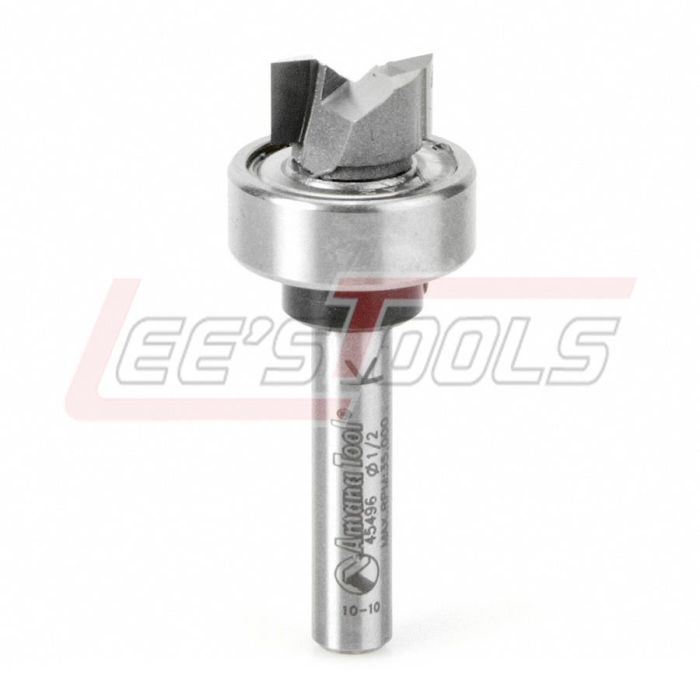

Flush Trim Plunge Template with Oversized Upper Ball Bearing
2 Flute
For template use with specified jigs.
|
øD |
B |
D1* |
ød |
L |
A |
Repl. Bearing |
Jigs |
Tool No. |
|
5/16 |
3/4 |
1/2 |
1/4 |
2-3/4 |
3/32 |
47701 |
Porter Cable Morten™, Morten & Tenon, Omnijig® |
45495 |
|
1/2 |
1/4 |
3/4 |
1/4 |
1-7/8 |
1/8 |
47714 |
Hinge-Mate™ II Template |
45496 |
|
1/2 |
3/8 |
5/8 |
1/4 |
2-1/2 |
1/16 |
47712 |
Replacement for “Porter cable” bit # 43671PC. For Mortising of Doors
to Accept Hinge Butts with Porter Cable Kit Model #59370 for 3”, 3-1/2”
and 4" Hinges |
45484 |
|
7/8 |
1-1/4 |
1-1/8 |
3/8 |
2-7/8 |
1/8 |
47738 |
--- |
45473 |
*D1 = Bearing Diameter
Replacement Collar #47724
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also
refer to laser etching on router bit shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 45496 |
