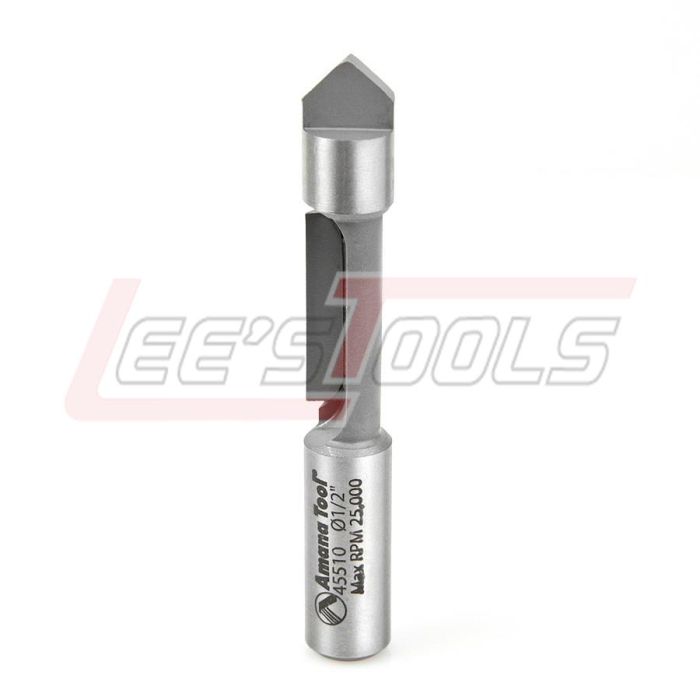

AMANA TOOL 45510 PANEL PILOT 1/2 DIA. 1/2 SHANK
$19.43
In stock
SKU
34207
Panel Pilot Router
Bits
Single Flute
Application: Designed for the mobile home and R.V.
industries, for fast cut out work.
|
D |
B |
d |
L |
Tool No. |
|
1/4 |
3/4 |
1/4 |
2-1/2 |
45506 |
|
3/8 |
1 |
1/4 |
2-7/8 |
45507 |
|
3/8 |
1 |
3/8 |
3 |
45508 |
|
1/2 |
1-3/16 |
1/2 |
3-1/2 |
45510 |
|
1/2 |
2 |
1/2 |
4-3/4 |
45511 |
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the
maximum RPM shown for the particular tool you are using. Max RPM for symmetrical
tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser
etching on router bit shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 45510 |
