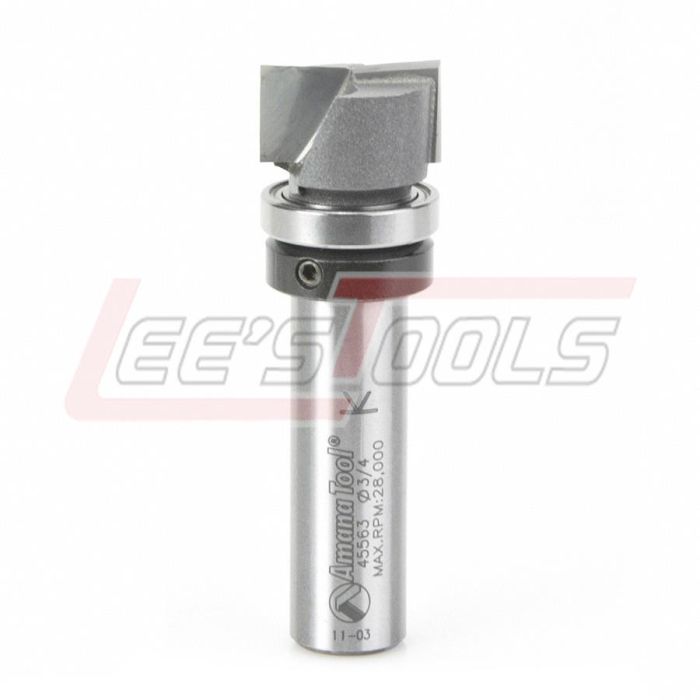

AMANA TOOL 45563 BOTTOM CLEANING W/UPPER BB 1/2
$53.33
In stock
SKU
34230
Mortising Bit forBottom
Cleaning with Upper Ball Bearing
2 Flute
- Up Shear design
Shank-mounted ball
bearing for pattern and template routing.
|
D |
B |
d |
L |
Replacement Bearing
|
Replacement Collar |
Tool No. |
|
3/4 |
7/16 |
1/4 |
2-1/4 |
47714 |
47724 |
45561 |
|
3/4 |
7/16 |
1/2 |
2-1/2 |
47721 |
47739 |
45563 |
|
1 |
7/16 |
1/2 |
2-1/2 |
47754 |
47739 |
45565 |
|
1-1/2 |
5/8 |
1/2 |
2-3/4 |
47758 |
47739 |
45567 |
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the
maximum RPM shown for the particular tool you are using. Max RPM for symmetrical
tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser
etching on router bit shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 45563 |
