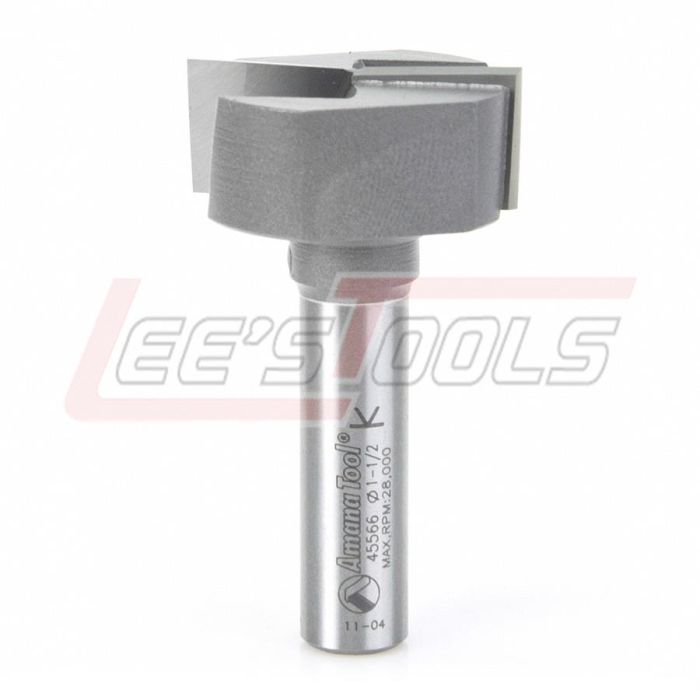

AMANA TOOL 45566 BOTTOM CLEANING BIT 1/2 SHANK
$61.01
In stock
SKU
34233
Mortising Bit for
Bottom Cleaning
2 Flute
- Up Shear design
This Mortise bit
is intended for broad, very shallow cuts, where an exceptional finish is
desired. Use it to clean up previously cut dadoes and grooves, or for surfacing
cuts. The up-shear configuration improves chip removal, while the cutting-edge
orientation produces a smooth surface.
|
D |
B |
d |
L |
Tool No. |
|
3/4 |
7/16 |
1/4 |
2-1/4 |
45560 |
|
3/4 |
7/16 |
1/2 |
2-1/2 |
45562 |
|
1 |
7/16 |
1/2 |
2-1/2 |
45564 |
|
1-1/2 |
5/8 |
1/2 |
2-3/4 |
45566 |
Max
RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool you are
using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note:
Please also refer to laser etching on router bit shank for most updated RPM
speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 45566 |
