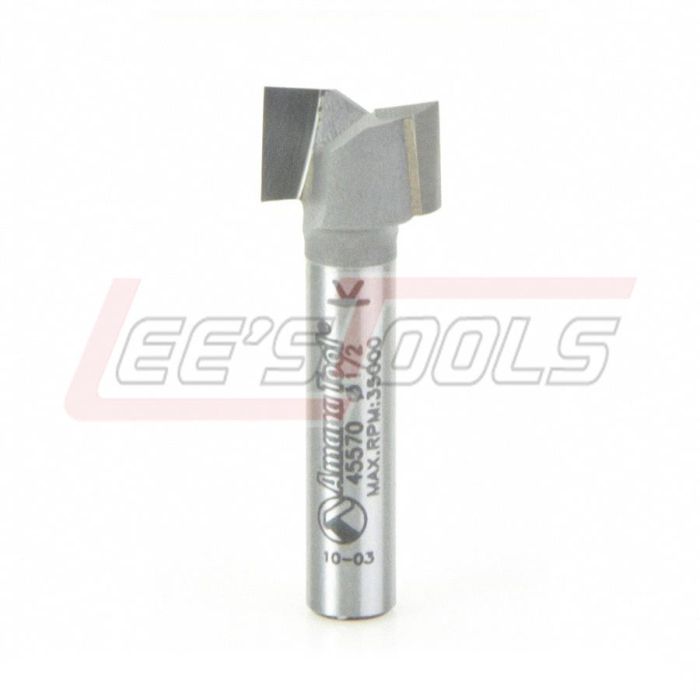

AMANA TOOL 45570 MORTISING 1/2 DIA. 1/4 SHANK
$24.79
In stock
SKU
34235
Mortising Router Bits
2 Flute Down Shear Design
Intended for hinge mortising, this bit is an excellent
choice for cutting laps and tenons as well. The sides and bottom of the cut are
exceptionally smooth. The down-shear design reduces chipping along the top edge
of the cut, especially in laminates, veneered plywood and MDF. The large gullet
between the cutting edges provides excellent chip clearance.
|
D |
B |
d |
L |
Tool No. |
|
1/2 |
5/16 |
1/4 |
1-7/16 |
45570 |
|
5/8 |
3/4 |
1/4 |
2-3/8 |
45574 |
|
3/4 |
3/4 |
1/2 |
2-1/4 |
45576 |
|
1-1/4 |
15/64 |
1/2 |
1-3/4 |
45578 |
|
1-1/4 |
1/2 |
1/2 |
2 |
45580 |
Max RPM Guide for
Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser
etching on router bit shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 45570 |
