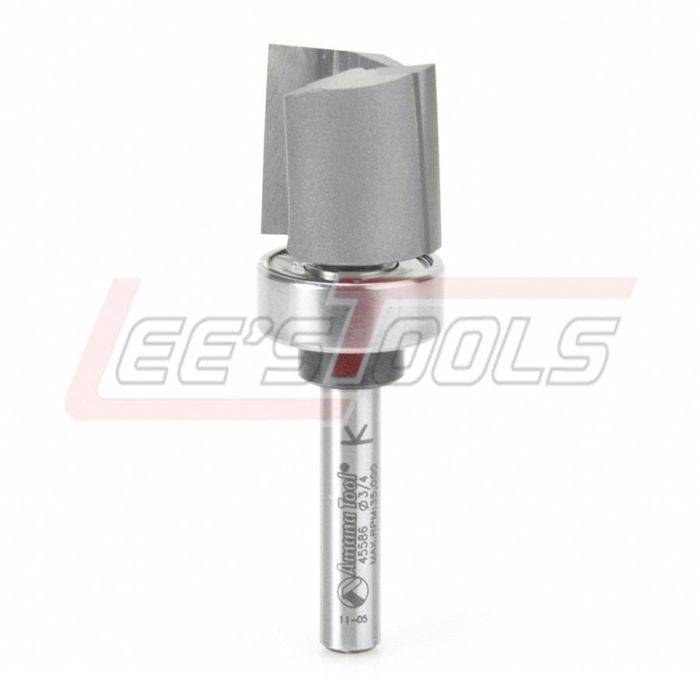

AMANA TOOL 45586 MORTISING 3/4 DIA. WITH B.B
$39.11
In stock
SKU
34243
Down-Shear Mortising Router Bits
2 Flute with Upper Ball Bearing
Shank-mounted ball-bearing for template and pattern work.
|
D |
B |
d |
L |
Replacement Bearing |
Replacement Collar |
Tool No. |
|
1/2 |
3/4 |
1/4 |
2-3/8 |
47701 |
47724 |
45582 |
|
5/8 |
3/4 |
1/4 |
2-3/8 |
47712 |
47724 |
45584 |
|
3/4 |
3/4 |
1/4 |
2-7/16 |
47714 |
47724 |
45586 |
|
1-1/4 |
15/64 |
1/2 |
2-5/8 |
47756 |
47740 |
45588 |
|
1-1/4 |
1/2 |
1/2 |
2-5/8 |
47756 |
47740 |
45590 |
Max RPM Guide for
Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser
etching on router bit shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 45586 |
