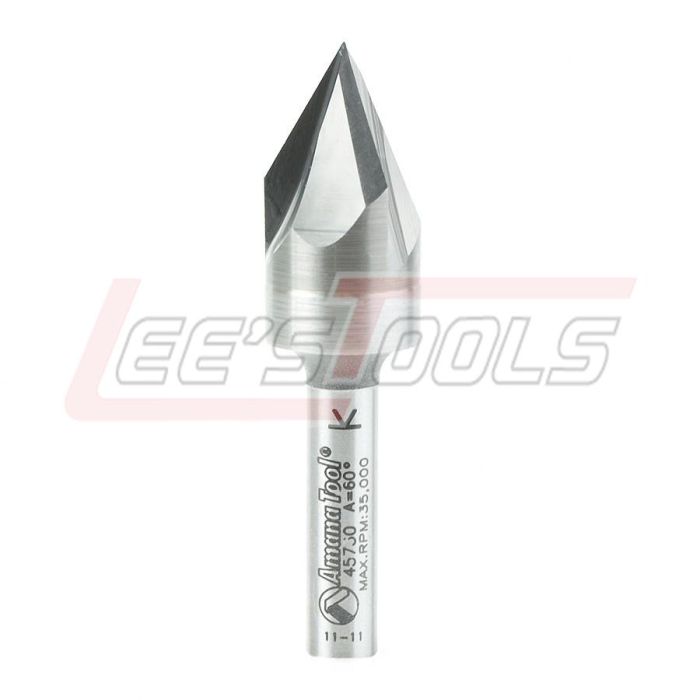

AMANA TOOL 45730 V GROOVE FOR ENGRAVING 1/4"SHK
$86.48
In stock
SKU
34289
Signmaking and Lettering Router Bits
Solid Carbide Cutting Head - 3
Flute
Signmaking bits were originally developed in Europe
specifically for professional sign makers, this 3-flute, solid-carbide bit
features an extra-fine 60° point that produces a clean, precise cut. For those
intricate lines, this bit is superior to standard ‘V’ groover. Makes crisp,
clean cuts in solid woods, MDF and acrylics.
|
D |
a° |
B |
d |
L |
Tool No. |
|
9/16 |
60° |
7/16 |
1/4 |
2-1/4 |
45730 |
|
9/16 |
60° |
7/16 |
1/2 |
21/4 |
45733 |
|
9/16 |
60° |
7/16 |
1/42 |
-1/2 |
45731 |
* For optimal use with acrylics.
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the
maximum RPM shown for the particular tool you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please
also refer to laser etching on router bit shank for most updated RPM speed
rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 45730 |
