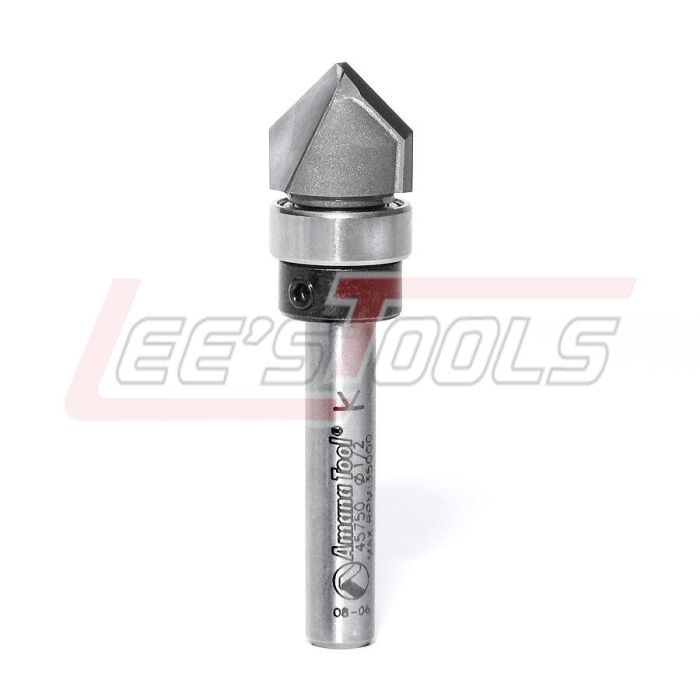

AMANA TOOL 45750 V GROOVE 1/2 DIA. UPPER B.B
$45.15
In stock
SKU
34300
'V' Groove Router
Bit
2 Flute
with Ball Bearing Guide
Designed for
fluting and ‘V’ grooving cuts guided by a template or pattern. The shank-mounted
ball-bearing pilot rides along the template edge, and the cutter duplicates the
template contour in the workpiece. With a
handheld router,
the template must be on top of the workpiece. With a table-mounted router, the
template must be on bottom of the workpiece.
|
D |
a° |
R |
B |
d |
L |
Type |
Tool No. |
|
1/2 |
90° |
- |
1/2 |
1/4 |
2 |
'V' Groove |
*45750 |
Replacement
Bearing: #47701. Replacement Collar: #47724.
*NOTE:
90° ‘V’ Groove bit is for decorative purposes and is not intended for
‘miter-folding’, etc.
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the
maximum RPM shown for the particular tool you are using. Max RPM for symmetrical
tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to
laser etching on router bit shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 45750 |
