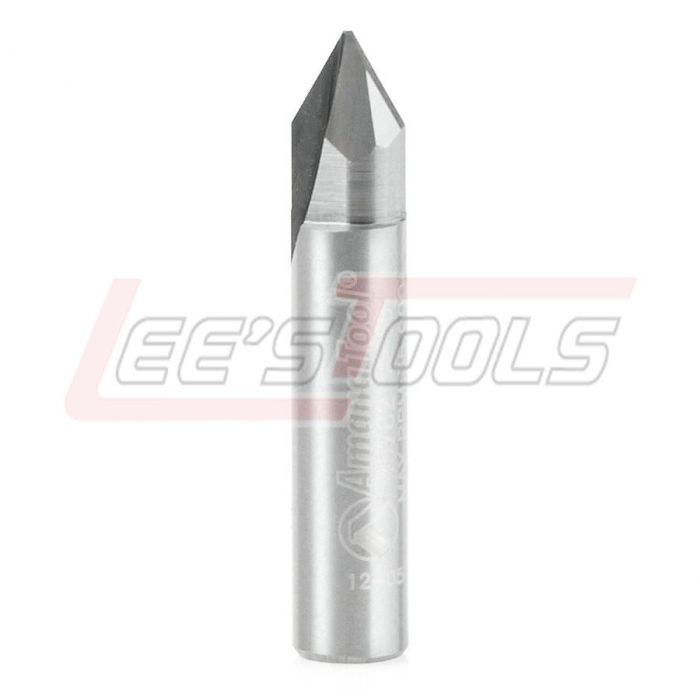

AMANA TOOL 45782 60ø V GROOVE ENGRAVING 1/4 DIA
$26.21
In stock
SKU
34317
Carving / Engraving Router Bits
2 Flute Solid Carbide
For fine-line “engraving” in wood and composite materials,
use either of these compact bits. Two-flute configuration and modest length
(which minimizes vibration) combine to produce crisp, clean cuts.
|
D |
a° |
B |
d |
L |
Tool No. |
|
3/16 |
82.5° |
1/2 |
1/4 |
1-11/16 |
45780 |
|
1/4 |
60° |
3/16 |
1/4 |
1-1/2 |
45782 |
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please
also refer to laser etching on router bit shank for most updated RPM speed
rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 45782 |
