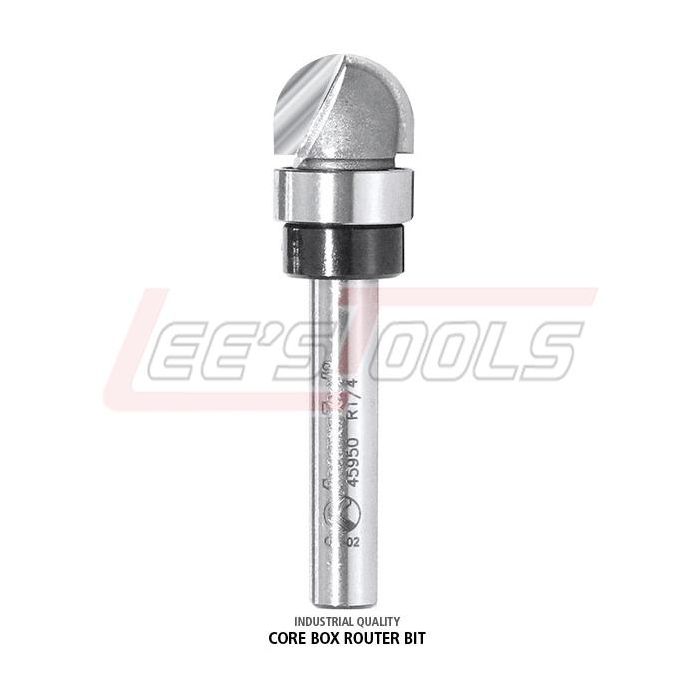

AMANA TOOL 45950 CORE BOX 1/2 DIA. WITH B.B
$43.91
In stock
SKU
34419
Core Box Router Bit
2 Flute with Ball Bearing Guide
The shank-mounted ball-bearing pilot rides along the template edge, and
the cutter duplicates the template contour in the workpiece. With a handheld
router, the template must be on top of the workpiece. With a table-mounted
router, the template must be on bottom of the workpiece.
|
D |
a° |
R |
B |
d |
L |
Type |
Tool No. |
|
1/2 |
- |
1/4 |
3/8 |
1/4 |
2 |
Core Box |
45950 |
Replacement Bearing: #47701. Replacement Collar: #47724.
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please
also refer to laser etching on router bit shank for most updated RPM speed
rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 45950 |
