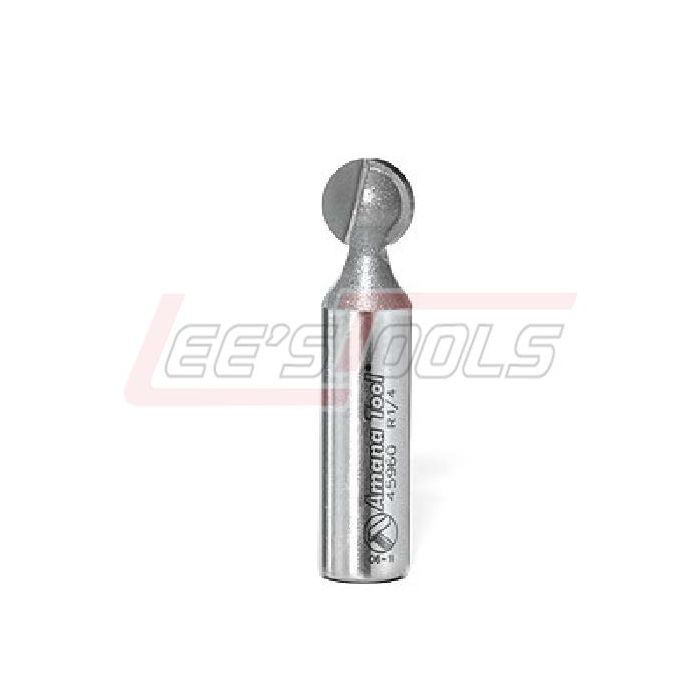

AMANA TOOL 45960 PLUNGE BALL 1/2 DIA. 1/2 SHANK
$31.80
Out of stock
SKU
34420
Ball End Router Bits
2 Flute
Cut channels for pipes or cables using the ball end bit.
The profile requires the cut to be made in a single pass. To reduce stress on
the bit, cut an initial groove using a straight bit matching the D1 dimension of
the ball end bit.
|
D |
D1 |
R |
B |
d |
L |
Tool No. |
|
1/2 |
1/4 |
1/4 |
7/16 |
1/2 |
2-1/4 |
45960 |
|
5/8 |
9/32 |
5/16 |
9/16 |
1/2 |
2-3/8 |
45962 |
|
3/4 |
5/16 |
3/8 |
11/16 |
1/2 |
2-1/2 |
45964 |
|
1 |
11/32 |
1/2 |
15/16 |
1/2 |
2-3/4 |
45968 |
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the
maximum RPM shown for the particular tool you are using. Max RPM for symmetrical
tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la
herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please
also refer to laser etching on router bit shank for most updated RPM speed
rating.
| Availability | Out of Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 45960 |
