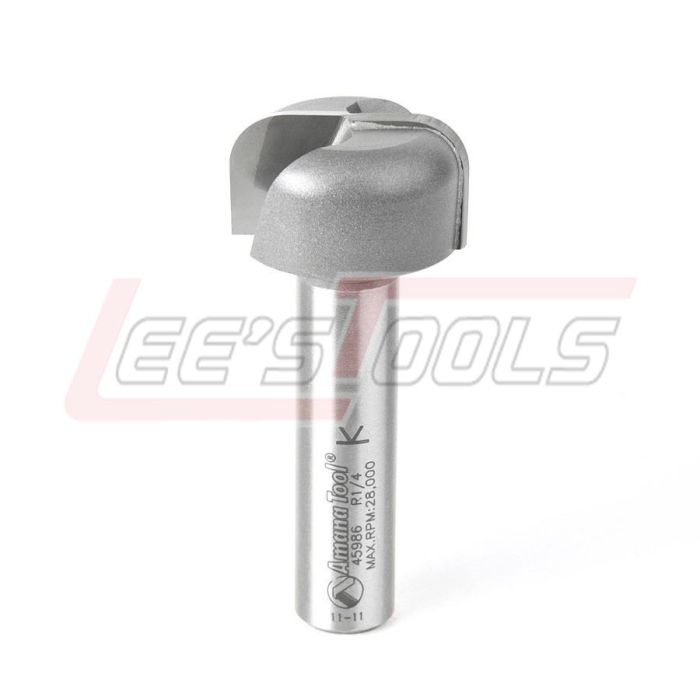

AMANA TOOL 45986 BOWL,TRAY,DISH 3 IN 1 1/2 SHK
$46.99
In stock
SKU
34432
Bowl & Tray Router Bits
2 Flute
For routing solid wood serving trays, flat dishes, shallow
bowls, and similar objects, use this 3 in 1 specialty plunging bit. It cuts
flat, smooth bottom surfaces, vertical walls, and a transition radius between
them, all in one pass. It can be used in handheld, table-mounted, and CNC
routers.
|
D |
R |
B |
d |
L |
Tool No. |
|
1/2 |
1/8 |
1/2 |
1/4 |
2-1/8 |
45981 |
|
3/4 |
1/4 |
5/8 |
1/4 |
2-5/8 |
45982 |
|
3/4 |
1/4 |
5/8 |
1/2 |
2-5/8 |
45984 |
|
1-1/8 |
1/4 |
5/8 |
1/2 |
2-5/8 |
45986 |
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please
also refer to laser etching on router bit shank for most updated RPM speed
rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 45986 |
