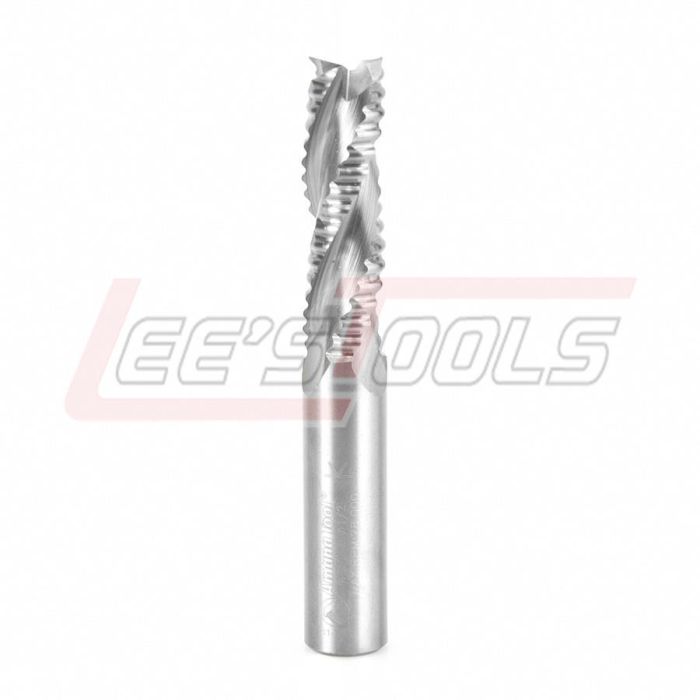

AMANA TOOL 46124 SC SPIRAL 1/2" DIA. ROUGHING
$167.70
In stock
SKU
34475
Spiral Roughing Solid Carbide w/Chipbreaker
3 Flute
Specially designed for high RPM/feed rate CNC routers.
Unique chipbreaker design is available with up-cut or down-cut. Will leave a
wavy, striated finish.
|
D |
B |
d |
L |
‘Up-Cut’ Tool No. |
‘Down-Cut’ Tool No. |
|
1/2 |
1-5/8 |
1/2 |
3-1/2 |
46124 |
46224 |
|
1/2 |
2 |
1/2 |
4 |
46126 |
46226 |
|
3/4 |
2-1/4 |
3/4 |
4 |
46130 |
--- |
Warning: Recommended RPM
20,000 - 21,000
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also
refer to laser etching on router bit shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 46124 |
