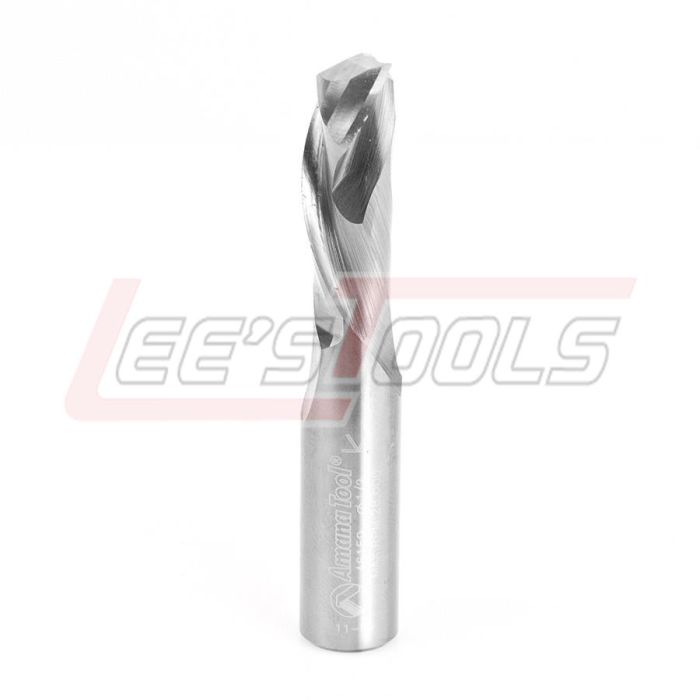

AMANA TOOL 46159 SOLID CAR.COMPRESSION 1/2" DIA
$111.94
In stock
SKU
34490
Compression Spiral Solid Carbide for MDF
Single Flute
Solid carbide compression spiral bits are designed for CNC
applications requiring high feed rates and a clean finish. Particularly suitable
for double-sided melamine or laminated material. Choose either single flute for
the highest possible feed rate or double flute for the best finish. Special
unique carbide for longer lifetime in abrasive material.
|
D |
B |
d |
L |
Tool No. |
|
1/4 |
7/8 |
1/4 |
2-1/2 |
46140 |
|
1/2 |
7/8 |
1/2 |
3 |
46150 |
|
1/2 |
1-1/4 |
1/2 |
3 |
46159 |
|
1/2 |
1-5/8 |
1/2 |
3-1/2 |
46160 |
|
3/4 |
2 |
3/4 |
4 |
46168 |
Warning: Recommended RPM
20,000 - 21,000
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the
maximum RPM shown for the particular tool you are using. Max RPM for symmetrical
tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please
also refer to laser etching on router bit shank for most updated RPM speed
rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 46159 |
