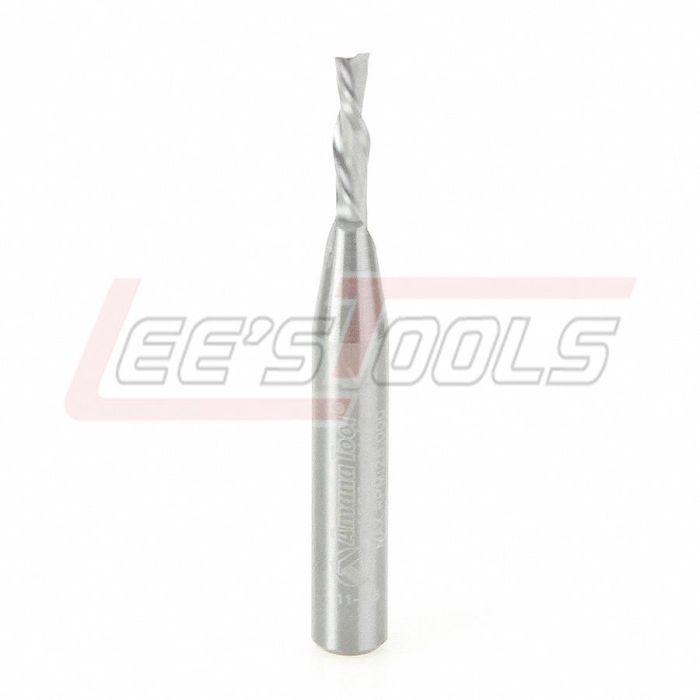

AMANA TOOL 46200 S0LID CARBIDE SPIRAL 1/8" DIA.
$28.88
In stock
SKU
34514
Spiral Flute Plunge Solid Carbide
New and Improved
Solid Carbide - 2 Flute
Spiral-flute bits combine a shearing action in cutting with
an augering action in chip clearance. The shearing action yields an especially
clean, accurate cut, while the augering action clears chips from the cut. The
“up-cut” shears from the bottom up, pulling chips from the bottom up, thus
allowing deeper penetration with less stress on the tool. An excellent choice
for mortising.
The “down-cut” cuts from the surface down, leaving a smooth
edge at the surface. Special unique carbide grade, increased clearance geometry
and razor-sharp cutting edges with polish flutes provides a superior finish and
longer tool life. Special unique carbide grade for longer lifetime in abrasive
materials. These bits are great for production settings and excellent for
creating grooves and dado cuts in softwood, hardwoods, plywood and composite
materials. Primarily used on CNC machines and other automatic routers. Also can
be used with hand-held and table-mounted portable routers.
|
D |
B |
d |
L |
‘Up-Cut’ Tool No. |
‘Down-Cut’ Tool No. |
|
1/8 |
1/2 |
1/4 |
2 |
46100 |
46200 |
|
5/32 |
5/8 |
1/4 |
2-1/2 |
46310 |
46410 |
|
3/16 |
3/4 |
1/4 |
2 |
46101 |
46201 |
|
7/32 |
1 |
1/4 |
2-1/2 |
46314 |
46414 |
|
1/4 |
3/4 |
1/4 |
2-1/2 |
46102 |
46202 |
|
1/4 |
1 |
1/4 |
2-1/2 |
46315 |
46415 |
|
1/4 |
1-1/8 |
1/4 |
3 |
46316 |
46416 |
|
5/16 |
1 |
1/2 |
3 |
46119 |
46219 |
|
9/32 |
1 |
5/16 |
2-1/2 |
46317 |
46417 |
|
9/32 |
1 |
1/2 |
3 |
46117 |
46217 |
|
5/16 |
1-1/8 |
1/2 |
3 |
46318 |
--- |
|
5/16 |
1-1/8 |
5/16 |
3 |
--- |
46419 |
|
3/8 |
1 |
3/8 |
2-1/2 |
46103 |
46203 |
|
3/8 |
1-1/4 |
3/8 |
3 |
--- |
46420 |
|
3/8 |
1-1/4 |
1/2 |
3 |
46104 |
46204 |
|
7/16 |
1-1/4 |
1/2 |
3 |
46105 |
--- |
|
1/2 |
1-1/4 |
1/2 |
3 |
46106 |
46206 |
|
1/2 |
1-5/8 |
1/2 |
3-1/2 |
46107 |
46207 |
|
5/8 |
1-5/8 |
5/8 |
3-1/2 |
46108 |
46208 |
|
5/8 |
2 |
5/8 |
4 |
46121 |
46221 |
Warning:
Recommended RPM 20,000 - 21,000
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the
maximum RPM shown for the particular tool you are using. Max RPM for symmetrical
tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please
also refer to laser etching on router bit shank for most updated RPM speed
rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 46200 |
