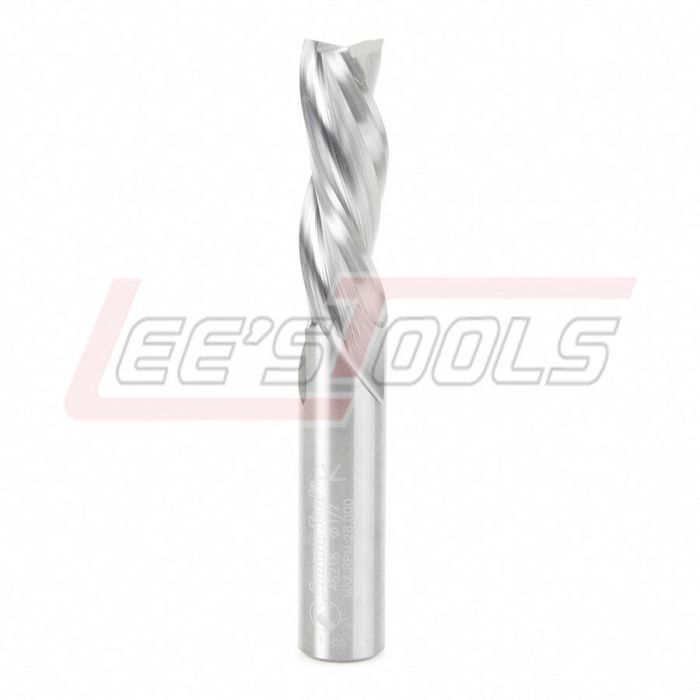

AMANA TOOL 46216 SOLID CARBIDE SPIRAL 1/2" DIA.
$102.68
In stock
SKU
34529
Solid Carbide Spiral Flute Plunge Bits
3 Flute
New 3 flute design for very high quality finish. Up-cut or
down-cut spiral.
|
D |
B |
d |
L |
‘Up-cut’ Tool No. |
‘Down-cut’ Tool No. |
|
3/8 |
1-1/4 |
3/8 |
3 |
46114 |
46214 |
|
1/2 |
1-1/2 |
1/2 |
3-1/2 |
46116 |
46216 |
|
1/2 |
2 |
1/2 |
4 |
46118 |
46218 |
Warning: Recommended RPM
20,000 - 21,000
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please
also refer to laser etching on router bit shank for most updated RPM speed
rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 46216 |
