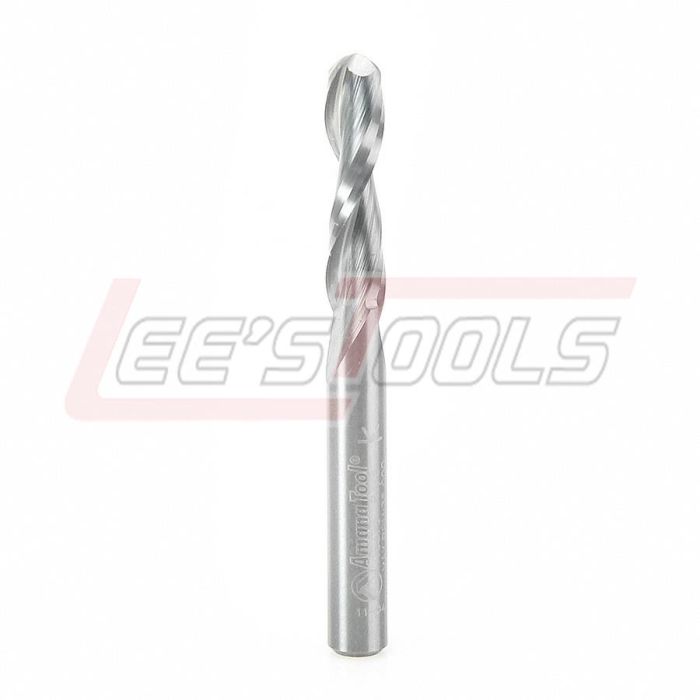

AMANA TOOL 46376 S.C SPIRAL BALLNOSE UPCUT 1/4"
$45.26
Out of stock
SKU
34618
Solid Carbide DoubleFlute Spiral Up-Cut Ball
Nose Spirals
2 Flute
Used for carving, decorative doors and sign
manufacturing.It leaves an excellent finish and expels chips quickly.
|
D |
B |
d |
L |
Tool No. |
|
1/4 |
1 |
1/4 |
2-1/2 |
46376 |
|
3/8 |
1-1/4 |
3/8 |
3 |
46378 |
|
1/2 |
1-1/4 |
1/2 |
3 |
46380 |
|
1/2 |
2-1/8 |
1/2 |
4 |
46384 |
|
5/8 |
2-1/8 |
5/8 |
4 |
46386 |
|
3/4 |
2 |
¾ |
4 |
46388 |
Warning: Recommended RPM
20,000 - 21,000
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the
maximum RPM shown for the particular tool you are using. Max RPM for symmetrical
tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please
also refer to laser etching on router bit shank for most updated RPM speed
rating.
| Availability | Out of Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 46376 |
