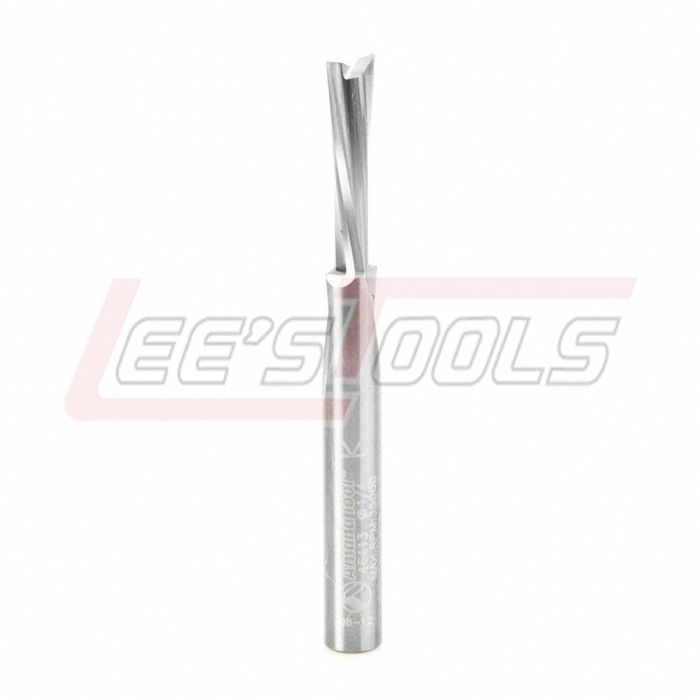

AMANA TOOL 46413 S.C.'O' FLUTE DOWN SPIRAL 1/4"
$33.64
In stock
SKU
34634
Solid Carbide
Acrylic 'O' Flute Slow Spiral Bits
2 Flute
UP-CUT & DOWN-CUT
Provides smooth
finishing in acrylic materials, and both soft and hard plastics.
|
D |
B |
d |
L |
Up-Cut Tool No. |
Down-Cut Tool No. |
|
1/4 |
3/4 |
1/4 |
2-1/2 |
46313 |
46413 |
|
1/4 |
1 |
1/4 |
2-1/2 |
46311 |
46411 |
NOTE:
CAN BE USED IN ALL HANDHELD AND
TABLE-MOUNTED ROUTERS
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser
etching on router bit shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 46413 |
