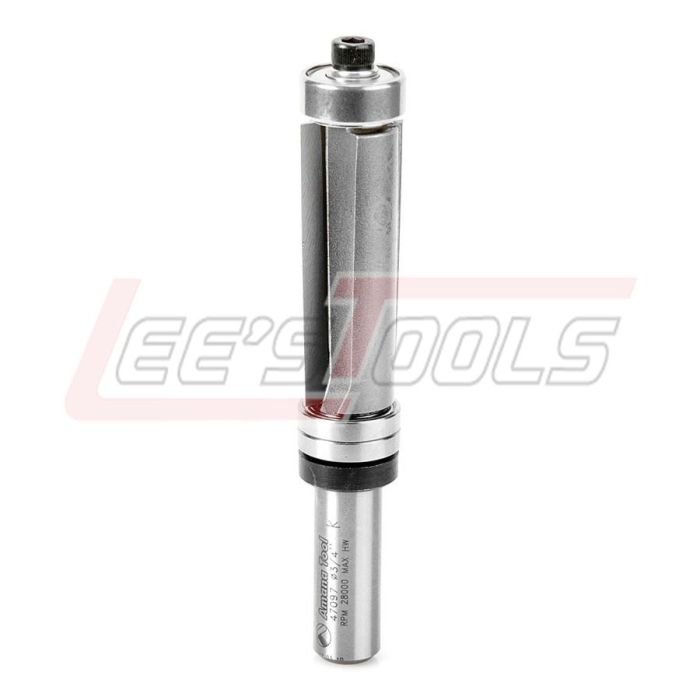

AMANA TOOL 47097 FLUSH TRIM DOUBLE BB 3/4 DIA
$66.49
In stock
SKU
34654
Down Shear Multi
Trimming Router Bits
2 Flute
This adaptable double bearing guided cutter has
down-shear design, which ensures a clean cut even in difficult materials. The
two bearing design allows the cutter to be used with the template mounted on
either side of the work and, consequently, it is possible to cut from either
direction using only one template and without moving the template to the other
side of the work piece. This is especially useful when cutting curves which run
both with and against the grain.
|
Replacement
Bearings |
||||||
|
D |
B |
d |
L |
Upper
|
Lower
|
Tool No. |
|
1/2 |
5/8 |
1/4 |
2-3/32 |
47701 |
47706 |
47094 |
|
3/4 |
1-1/4 |
1/2 |
3-3/4 |
47721 |
47714 |
47096 |
|
3/4 |
2 |
1/2 |
4-5/16 |
47721 |
47714 |
47097 |
NOTE:
CAN BE USED IN ALL HANDHELD AND TABLE-MOUNTED ROUTERS
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please
also refer to laser etching on router bit shank for most updated RPM speed
rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 47097 |
