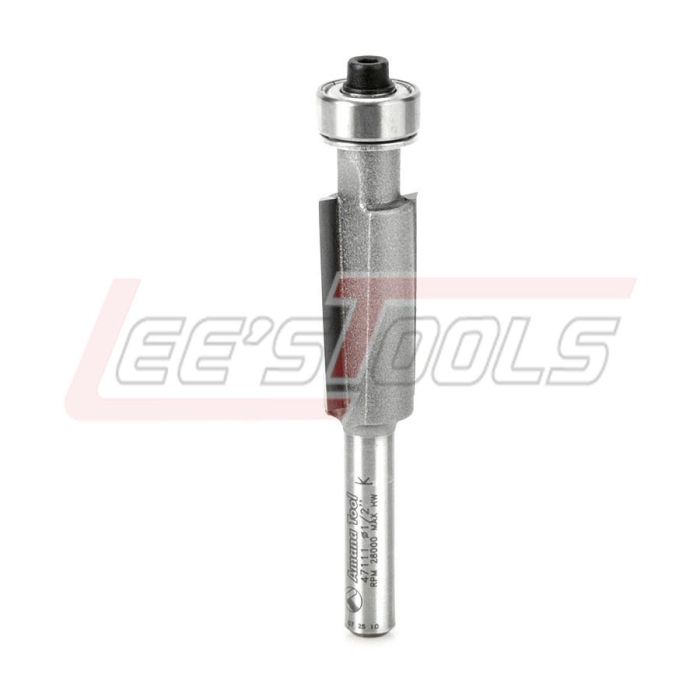

AMANA TOOL 47111 FLUSH TRIM DOWNSHEAR 1/4 SHANK
$25.84
In stock
SKU
34681
Dynabit™ Laminate Trim w/ Ball Bearing Guide
2 Flute
The Dynabit™ line features a modest down-shear for an
excellent finish. The helix bits have a spiral-like twist to the cutting edges,
making them especially good on difficult materials such as melamine. An
adhesive-trapping gap between cutting edges & pilot bearing is featured on tools
#47111 & #47113.
|
D |
B |
d |
L |
Type |
Replacement Bearing |
Tool No. |
|
3/8 |
1/2 |
1/4 |
2-3/8 |
Down-Shear |
47702 |
47115 |
|
1/2 |
1 |
1/4 |
2-5/8 |
Down-Shear |
47706 |
47105 |
|
1/2 |
1 |
1/2 |
3 |
Down-Shear |
47706 |
47109 |
|
1/2 |
1 |
1/4 |
2-7/8 |
Down-Shear |
47706 |
47111 |
|
1/2 |
1 |
1/2 |
3-1/4 |
Down-Shear |
47706 |
47113 |
|
1/2 |
2 |
1/2 |
4 |
Down-Shear |
47706 |
47129 |
|
5/8 |
5/8 |
1/4 |
2 |
Flush Helix |
47712 |
47180 |
|
3/4 |
5/8 |
1/4 |
2-1/4 |
Flush Helix |
47714 |
47182 |
|
3/4 |
3/8 |
1/4 |
2 |
15° Bevel |
47714 |
47184 |
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on
router bit shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 47111 |
