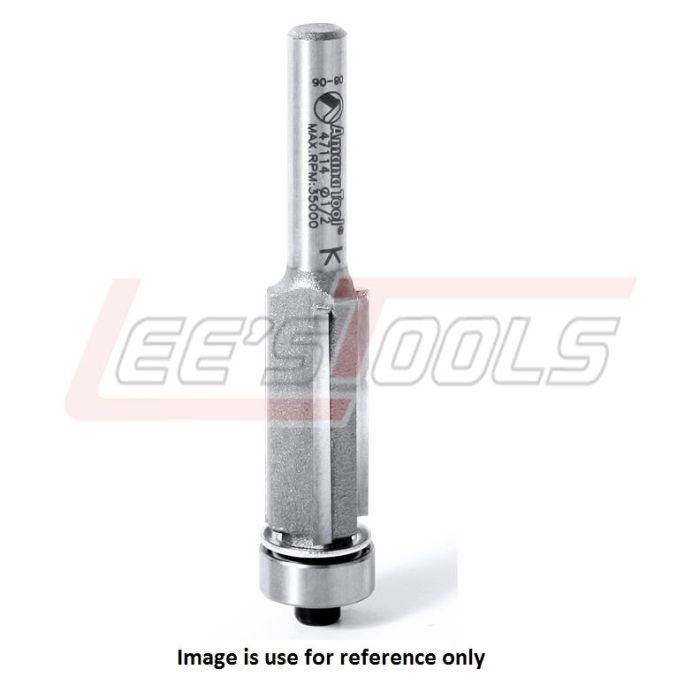

AMANA TOOL 47114 FLUSH TRIM 3 FLUTE 1/4 SHANK
$27.83
In stock
SKU
34684
Flush Trim Router Bits with Ball Bearing Guide
For an extremely smooth finish, choose the three-flute
configuration. It is especially good to use on laminates that tend to chip
easily.
3 Flute
|
D |
B |
d |
L |
Tool No. |
|
1/2 |
1 |
1/4 |
2-5/8 |
47114 |
|
1/2 |
1/2 |
1/4 |
2 |
47116 |
|
1/2 |
1 |
1/2 |
3-1/4 |
47118 |
|
1/2 |
1 |
1/2 |
3-5/8 |
47118-2•• |
|
1/2 |
1/2 |
1/2 |
2-5/8 |
47120 |
Standard replacement bearing (.500" dia.), use #47706.
Undersized bearing (.492" dia.), use #47715 - for use after
re-sharpening.
••Durable ball bearing for added stability.
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to
laser etching on router bit shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 47114 |
