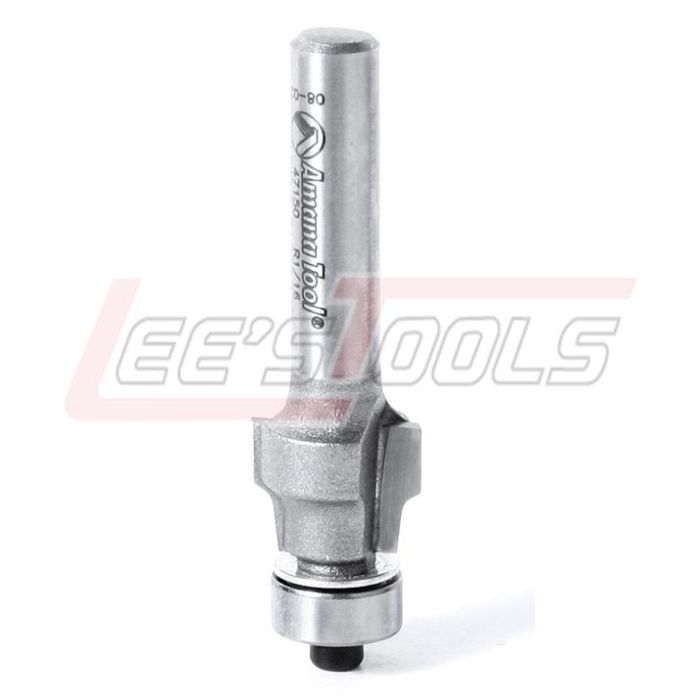

AMANA TOOL 47154 NO-FILE TRIM .025-.038 LAMINAT
$33.08
In stock
SKU
34713
No-File™ with Ball Bearing Guide
2 Flute
Eliminate the time-consuming hand-filing that normally
follows each trimming cut on a laminate job. Our “No-File™” bit “breaks” the
sharp edge as it trims the laminate flush.
|
D |
B |
R |
d |
L |
Tool No. |
|
1/2 |
3/8 |
.059 (1.5mm) |
1/4 |
1-7/8 |
47150 |
|
1/2 |
3/8 |
.059 (1.5mm) |
1/2 |
2-1/8 |
47152 |
|
1/2 |
3/8 |
.015 (0.4mm) |
1/4 |
1-7/8 |
47154 |
NOTE: #47154 is for laminates .025"-.038" thick (.4mm
radius), #’s 47150-47152 are for laminates .042"-.052" thick (1.5mm radius).
Replacement bearing #47704 (3/8" diameter)
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to
laser etching on router bit shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 47154 |
