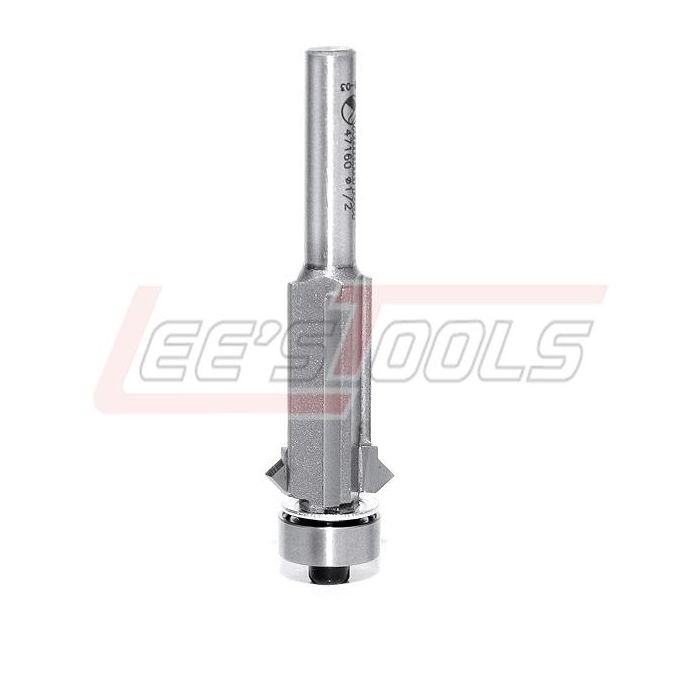

AMANA TOOL 47162 FLUSH TRIM "V" GROOVE BIT
$39.45
In stock
SKU
34716
Flush Trim 'V' Groove Router Bit
2 Flute with Ball Bearing Guide
Trim the edges of face frames flush with cabinet sides with
this bit. At the same time, cut a decorative 'V' groove to conceal the seam
between thr frame and the case.
|
øD |
øD1 |
B |
ød |
L |
Tool No. |
|
5/8 |
1/2 |
1 |
1/4 |
2-1/2 |
47160 |
|
5/8 |
1/2 |
1 |
1/2 |
3 |
47162 |
Replacement bearing: #47706.
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to
laser etching on router bit shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 47162 |
