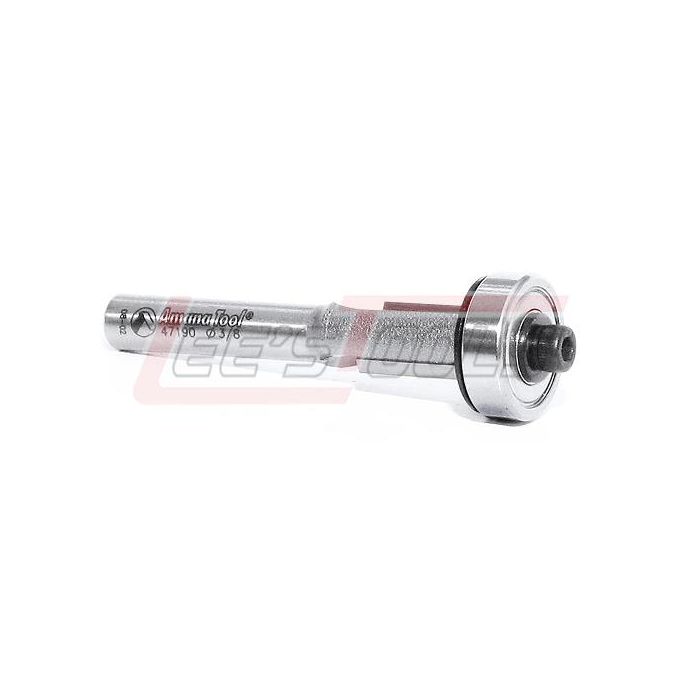

AMANA TOOL 47190 OVERHANG BIT 3/8 DIA 1/4 SHANK
$27.34
Out of stock
SKU
34725
Overhang Trim Router Bits
2 Flute With Ball Bearing Guide
Used for preliminary laminate trimming, leaving a small
overhang. Reduces chipping of material caused by excessive feed-rate or
vibration. Final pass can be achieved using a standard trim bit, or 'No-File'™
bit.
Replacement bearing #47718.
|
D |
B |
d |
L |
A |
Tool No. |
|
3/8 |
1/2 |
1/4 |
2 |
1/8 |
47190 |
|
1/2 |
1/2 |
1/4 |
2 |
1/16 |
47192 |
|
1/2 |
1/2 |
1/2 |
2-5/8 |
1/16 |
47194 |
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on router bit
shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 47190 |
