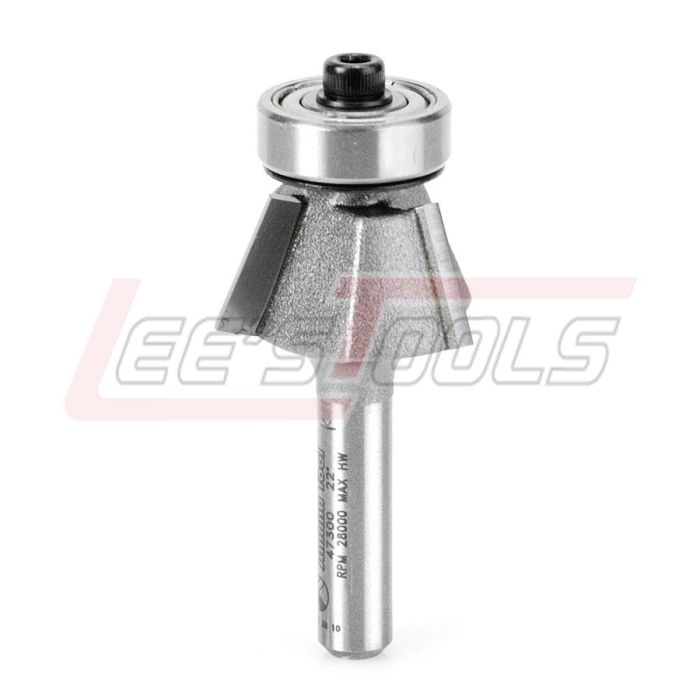

AMANA TOOL 47300 BEVEL TRIM 22 DEGREE 3 FLUTE
$32.06
In stock
SKU
34737
Bevel Trim Router Bits
2 Flute
This is a steel-bodied, carbide-tipped bit for bevel
trimming laminate with a standard router. The solid construction reduces
vibration for the smoothest cut possible with a two-flute bit.
|
øD |
a° |
B |
ød |
L |
Tool No. |
|
5/8 |
15° |
9/32 |
1/4 |
1-7/8 |
47200 |
|
1/2 |
22° |
3/8 |
1/4 |
1-3/4 |
47201 |
|
23/32 |
25° |
9/32 |
1/4 |
1-7/8 |
47202 |
|
3/4 |
25° |
7/16 |
1/4 |
1-7/8 |
47206 |
|
1-1/16 |
45° |
9/32 |
1/4 |
2 |
47204 |
NOTE: Tool
#47206 has a 3/8" diameter bearing for closer inside corner cutting. Replacement
Bearing: Tool #47206 use #47704 bearing. All other tools use #47706 bearing
(1/2" dia.) or new #47715 (.492" dia.) for use after resharpening.
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the
maximum RPM shown for the particular tool you are using. Max RPM for symmetrical
tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note:
Please also refer to laser etching on router bit shank for most updated
RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 47300 |
