AMANA TOOL 47400 FLUSH 4 WING TRIM CUTTERS
$34.13
Out of stock
SKU
34742

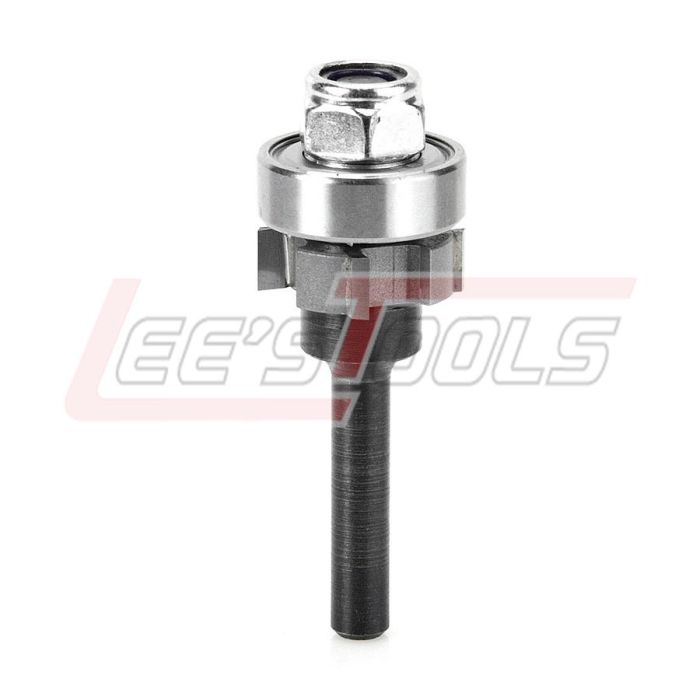

4 Wing Bevel Trim Cutter Assembly
Includes: Cutter, Arbor and Ball
Bearing Guide
An assembly offers the option of switching cutters—from
flush trim to either of two bevel trims—without removing the bit from the router
or evenchanging the depth-of-cut setup. Four flutes yield a smooth, crisp cut
finish. All parts can be replaced individually.
|
øD |
a° |
B |
ød |
L |
Tool No. |
|
7/8 |
Flush |
1/4 |
1/4 |
2-3/8 |
47400 |
|
7/8 |
Flush |
1/4 |
1/2 |
2-3/8 |
47402 |
|
1 |
15° |
1/4 |
1/4 |
2-3/8 |
47404 |
|
1 |
15° |
1/4 |
1/2 |
2-3/8 |
47406 |
|
1-1/16 |
25° |
1/4 |
1/4 |
2-3/8 |
47408 |
|
1-1/16 |
25° |
1/4 |
1/2 |
2-3/8 |
47410 |
Replacement Parts
Arbors: 1/4" - #47600, 3/8" - #47602, 1/2" - #47604.
Cutters: Flush - #47500, 15° - #47502, 25° - #47504.
Bearing: #47708.
Max RPM Guide for
Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to
laser etching on router bit shank for most updated RPM speed rating.
| Availability | Out of Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 47400 |
