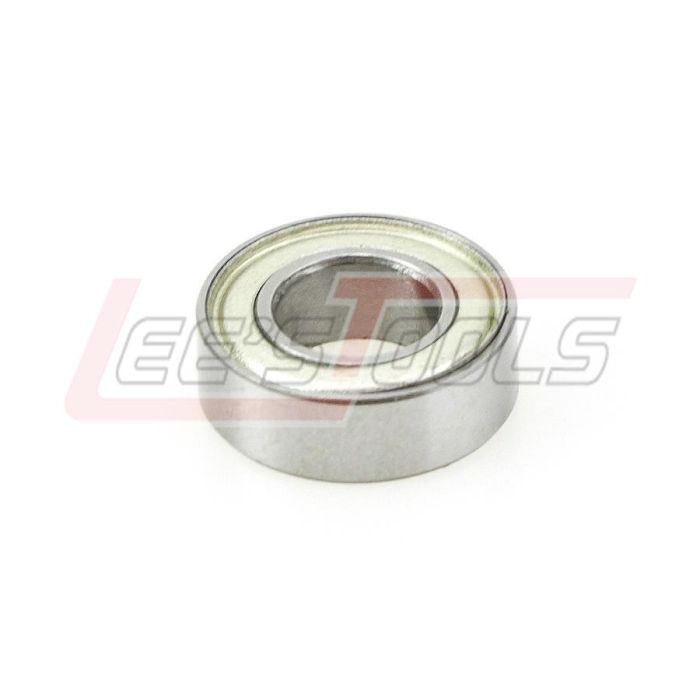

AMANA TOOL 47702 3/16 X 3/8 BALL BEARING GUIDE
$5.70
In stock
SKU
34786
Multi-Rabbet Router Bits
2 Flute with 4 different ball bearings and rabbet depths
The multi-rabbet bit steps in 1/16" increments
from a 1/8" cut width to 1/2", simply by switching ball-bearing guides. Six
different bearings are provided. Depth of cut capacity of 1/2'. Use in a
handheld or table-mounted router.
|
D |
A |
B |
d |
L |
Tool No. |
|
1 |
1/8, 1/4, 5/16, 3/8, 7/16, 1/2 |
1/2 |
1/4 |
2 |
49340 |
|
1 |
1/8, 1/4, 5/16, 3/8, 7/16, 1/2 |
1/2 |
1/2 |
2-3/8 |
49350 |
|
A |
Replacement
Bearing |
|
|
1/2 |
Rabbet |
47702 |
|
7/16 |
Rabbet |
47706 |
|
3/8 |
Rabbet |
47718 |
|
5/16 |
Rabbet |
47720 |
|
1/4 |
Rabbet |
47719 |
|
1/8 |
Rabbet |
47743 |
#6000: Complete replacement kit including 6
bearings, hex key, washer & screw
Screw #67094, Washer #67202
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the
particular tool you are using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para
cada herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on router bit
shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 47702 |
