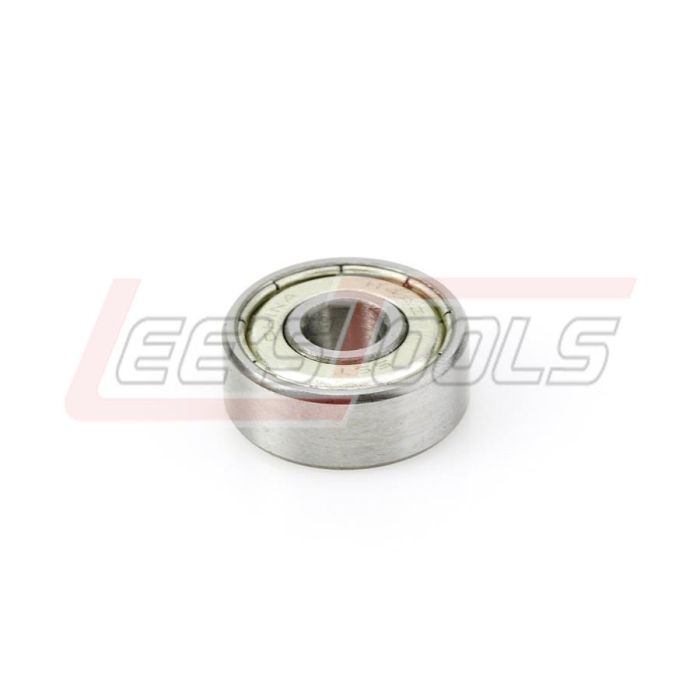

AMANA TOOL 47714 1/4 X 3/4 BALL BEARING GUIDE
$5.74
Out of stock
SKU
34801
Dynabit™ Laminate Trim w/ Ball Bearing Guide
2 Flute
The Dynabit™ line features a modest down-shear for
an excellent finish. The helix bits have a spiral-like twist to the cutting
edges, making them especially good on difficult materials such as melamine. An
adhesive-trapping gap between cutting edges & pilot bearing is featured on tools
#47111 & #47113.
|
D |
B |
d |
L |
Type |
Replacement
Bearing |
Tool No. |
|
3/8 |
1/2 |
1/4 |
2-3/8 |
Down-Shear |
47702 |
47115 |
|
1/2 |
1 |
1/4 |
2-5/8 |
Down-Shear |
47706 |
47105 |
|
1/2 |
1 |
1/2 |
3 |
Down-Shear |
47706 |
47109 |
|
1/2 |
1 |
1/4 |
2-7/8 |
Down-Shear |
47706 |
47111 |
|
1/2 |
1 |
1/2 |
3-1/4 |
Down-Shear |
47706 |
47113 |
|
1/2 |
2 |
1/2 |
4 |
Down-Shear |
47706 |
47129 |
|
5/8 |
5/8 |
1/4 |
2 |
Flush Helix |
47712 |
47180 |
|
3/4 |
5/8 |
1/4 |
2-1/4 |
Flush Helix |
47714 |
47182 |
|
3/4 |
3/8 |
1/4 |
2 |
15° Bevel |
47714 |
47184 |
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the
particular tool you are using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para
cada herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit
Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer
to laser etching on router bit shank for most updated RPM speed rating.
| Availability | Out of Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 47714 |
