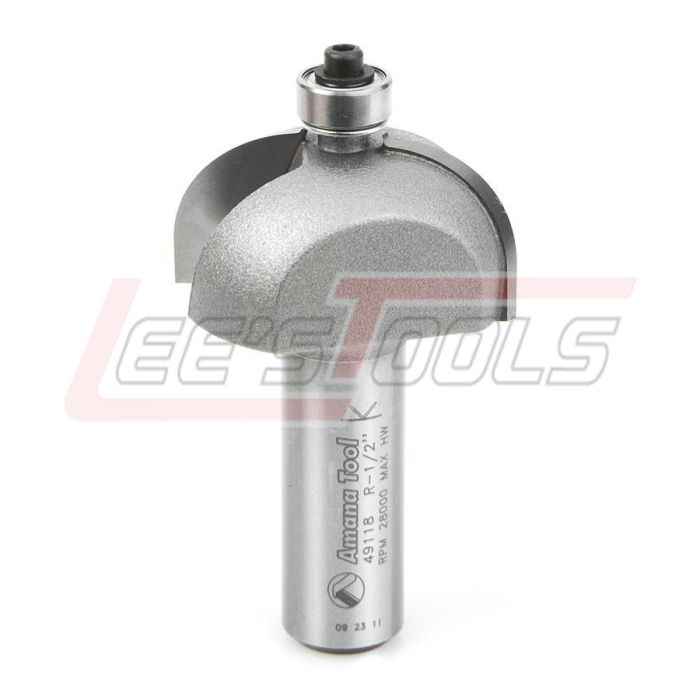

AMANA TOOL 49118 COVE BIT 1/2 RAD 1/2 SHANK
$46.28
In stock
SKU
34898
Cove Router Bits
2 Flute with Ball Bearing Guide
The covetto form—produced by the cove bit—is one of the
classic building blocks for many molding profiles. Use it alone or in
combination with beads and fillets. Use the cove as well to detail the edges of
casework, doors and drawers, posts and columns. The cove also makes up one-half
of the rule joint used on drop-leaf tables. The other half is the corner-round.
Use in handheld or table-mounted routers. Large-diameter tools must be run at
reduced speed. For best results with a large radius cutter, make a preliminary
cut with a smaller radius bit or chamfer the workpiece to reduce the amount of
stock to be removed in the finish pass. This will produce a smoother finish and
prolong tool life.
|
|
R |
D |
B |
d |
L |
Tool No. |
|
|
1/16 |
1/2 |
1/2 |
1/4 |
2 |
49092 |
|
|
1/8 |
5/8 |
1/2 |
1/4 |
2 |
49094 |
|
|
3/16 |
3/4 |
9/16 |
1/4 |
2 |
49100 |
|
|
3/16 |
3/4 |
9/16 |
1/2 |
2-3/8 |
49102 |
|
|
1/4 |
7/8 |
9/16 |
1/4 |
2 |
49104 |
|
|
1/4 |
1 |
1/2 |
1/4 |
2-1/16 |
RC-49104 |
|
|
1/4 |
7/8 |
9/16 |
1/2 |
2-3/8 |
49106 |
|
|
5/16 |
1 |
9/16 |
1/4 |
2-1/8 |
49108 |
|
|
5/16 |
1 |
9/16 |
1/2 |
2-3/8 |
49110 |
|
|
3/8 |
1-1/8 |
9/16 |
1/4 |
2 |
49112 |
|
|
3/8 |
1-1/8 |
9/16 |
1/2 |
2-3/8 |
49114 |
|
|
1/2 |
1-3/8 |
3/4 |
1/4 |
2-1/4 |
49116 |
|
|
1/2 |
1-3/8 |
3/4 |
1/2 |
2-1/2 |
49118 |
|
|
5/8 |
1-5/8 |
11/16 |
1/2 |
2-1/2 |
49119 |
|
18! |
3/4 |
2 |
1 |
1/2 |
2-7/8 |
49120 |
|
12! |
7/8 |
2-1/4 |
1-1/4 |
1/2 |
3-1/8 |
†49121? |
|
12! |
1 |
2-1/2 |
1-1/4 |
1/2 |
3 |
†49122? |
†Not guaranteed due to extreme diameter and radius. For
best results it is recommended to use a smaller radius bit or chamfer the
material prior to using these large radius tools. Tool life will be prolonged
and a smoother finish will result.
Replacement bearings #'s 49120, 49121 & 49122 use #47706.
All others tools use #47704 bearing.
Warning: Maximum RPM
12! = 12,000; 18!
= 18,000
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the
maximum RPM shown for the particular tool you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to
laser etching on router bit shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 49118 |
