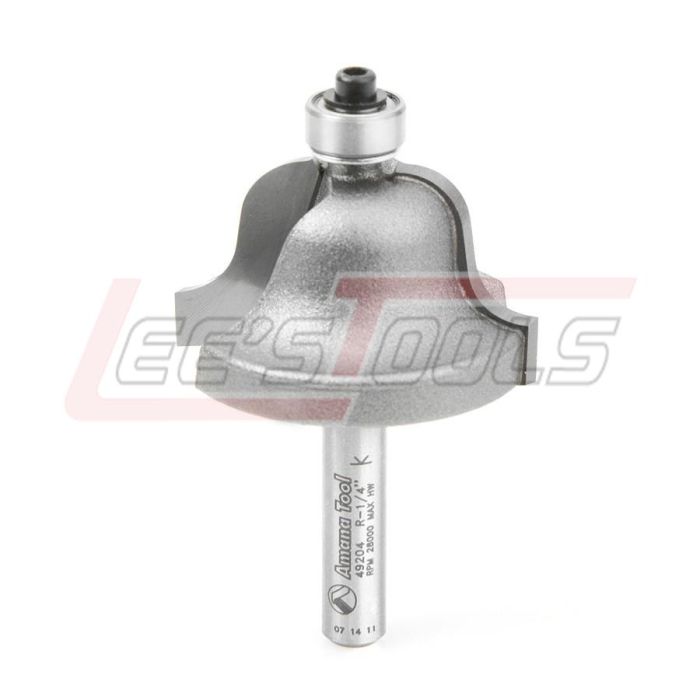

AMANA TOOL 49204 ROMAN OGEE 1/4 RAD. 1/4 SHANK
$34.84
In stock
SKU
34911
Roman Ogee Router Bits
2 Flute
The Roman ogee
bit, which has a convex curve coming off the bearing, produces the reverse of
the ogee (it isn''t an upside-down ogee). The curve starts at the top as a
concave, and fairs down into a convex curve. Use a handheld or table-mounted
router.
Key Specifications
|
D
|
R
|
B |
d |
L |
Tool No. |
|
1 |
5/32 |
5/8 |
1/4 |
2-1/8 |
49200 |
|
1 |
5/32 |
5/8 |
1/2 |
2-1/2 |
49202 |
|
1-3/8 |
1/4 |
13/16 |
1/4 |
2-1/4 |
49204 |
|
1-3/8 |
1/4 |
13/16 |
1/2 |
2-5/8 |
49206 |
|
2 |
3/8 |
1 |
1/2 |
3 |
49207 |
Replacement
bearing for #49207 use #47706. All others use#47704 bearing.
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on router bit
shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 49204 |
