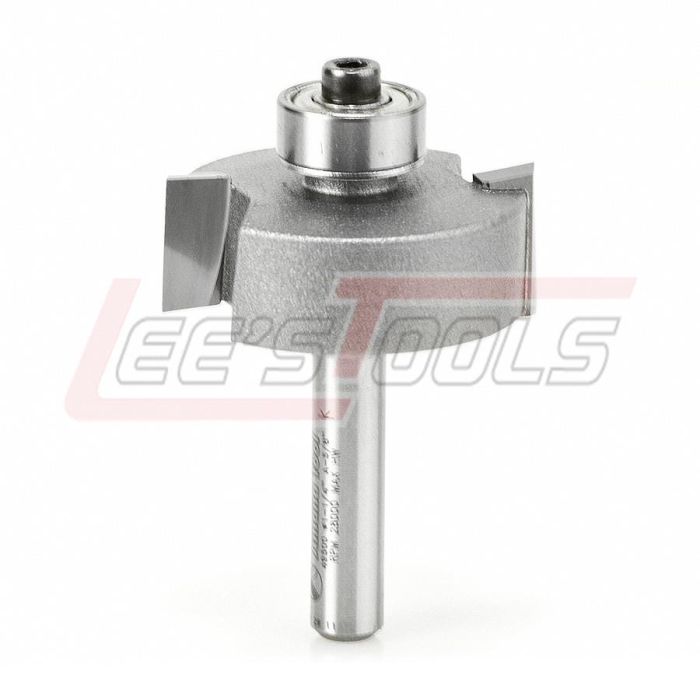

AMANA TOOL 49300 RABBETTING 1-1/4 DIA.1/4 SHANK
$37.09
In stock
SKU
34926
Rabbet Router Bits
2
Flutewith Ball Bearing Guide
This is the basic
rabbeting bit. Itcuts 3/8" wide and up to 1/2" deep. Switch to one of four
optionalball-bearing guides to alter the width of cut. Use in all handheld
andtable-mounted routers.
|
øD |
A |
B |
ød |
L |
Tool No. |
|
1-1/4 |
3/8 |
1/2 |
1/4 |
2 |
49300 |
|
1-1/8 |
3/8 |
1/2 |
1/4 |
1-7/8 |
RC-49300 |
|
1-1/4 |
3/8 |
1/2 |
1/2 |
2-3/8 |
49302 |
|
A |
Replacement Bearings |
|
Standard...... 3/8 |
Rabbet 47706 |
|
OR...............7/16 |
Rabbet 47702 |
|
OR...............5/16 |
Rabbet 47718 |
|
OR.................1/4 |
Rabbet 47720 |
Max
RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool you are
using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note:
Please also refer to laser etching on router
bit shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 49300 |
