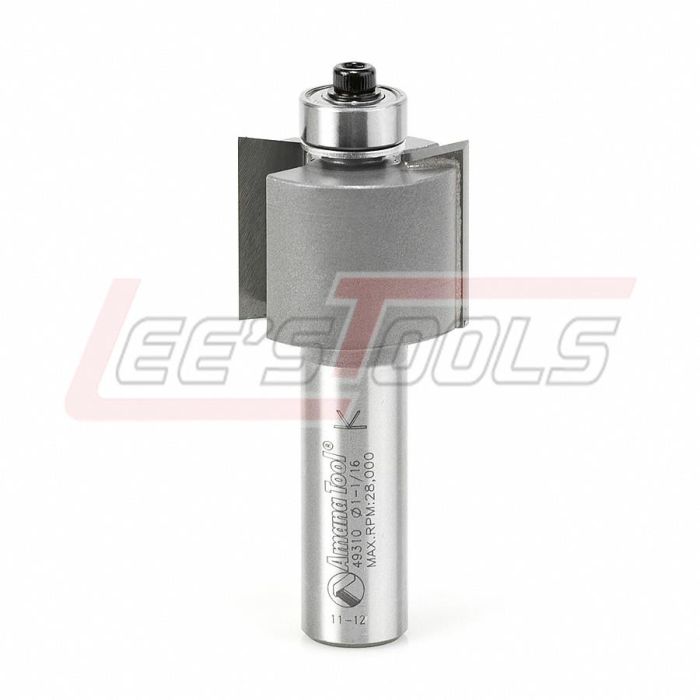

AMANA TOOL 49310 SMART CLIP
$52.05
In stock
SKU
34932
Special Rabbet Router Bits
2 Flute With Ball Bearing Guide
Depth Of Rabbet 9/32"
Designed for the "smart clip" backsplash system.
Replacement bearing 47706.
|
D |
A |
B |
d |
L |
Tool No. |
|
1-1/16 |
9/32 |
7/8 |
1/2 |
2-5/8 |
49310 |
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to
laser etching on router bit shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 49310 |
