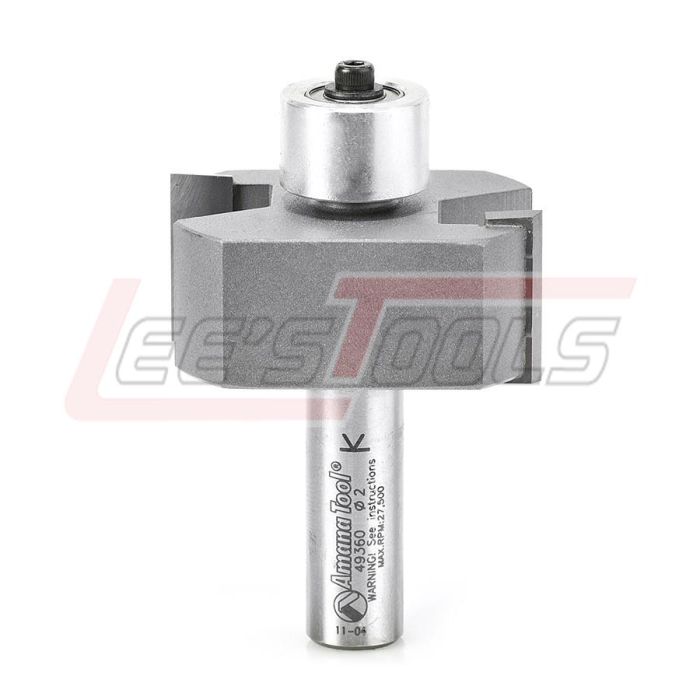

AMANA TOOL 49360 SUPERRABBET 2" DIA. 1/2 SHANK.
$98.25
In stock
SKU
34937
Superabbet™ Router Bits
2 Flute with Ball Bearing Guides
Ingenious rabbeting bits that will enable rabbet cuts from
flush through 3/4" in 1/16" increments, and five undersized plywood sizes, using
optional collars. Particularly useful when working with large stock, or when a
precise rabbet depth is required (ie. 23/32 depth for plywood). There are 18
different rabbet sizes available between the standard and optional collars. The
basic tools #49360 & RC-49360) are supplied with a 2" diameter rabbet bit, hex
key, instructions and all necessary parts for 5/8" and 3/4" depth rabbets.
|
D |
A |
B |
d |
L |
Tool No. |
|
2 |
5/8 & 3/4 |
7/8 |
1/2 |
3 |
49360 |
Warning:
Maximum RPM= 22,000
•
Replacement Screw for Bearing #67094
•
Replacement Washer for Bearing #67202
•
Replacement Spacer Bearing #67206
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the
maximum RPM shown for the particular tool you are using. Max RPM for symmetrical
tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on
router bit shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 49360 |
