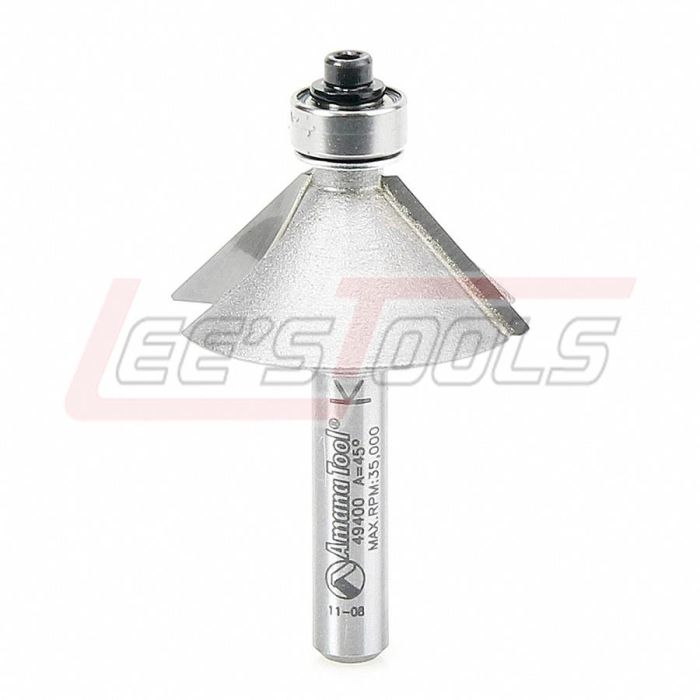

AMANA TOOL 49400 CHAMFER 45 DEGREE 1/4 SHANK
$36.45
In stock
SKU
34942
Chamfer Router Bits
2 Flute
Chamfer or bevel edges for decorative effect or to form
edge miter joints. Produce crisp, uniform edges at accurate angles to make 4-,
6-, 8-, 12-, or 16-sided boxes. For best results use in a router table!
|
|
a° |
D |
B |
C |
d |
L |
Tool No. |
|
|
45° |
1-1/4 |
1/2 |
5/8 |
1/4 |
2 |
49400 |
|
|
45° |
1-1/4 |
1/2 |
5/8 |
1/2 |
2-3/8 |
49402 |
|
|
45° |
2 |
3/4 |
1-1/8 |
1/2 |
2-1/2 |
*49404? |
|
16! |
45° |
2-3/8 |
1 |
1-3/8 |
1/2 |
2-7/8 |
†49406? |
|
16! |
45° |
3 |
1-1/8 |
1-1/2 |
1/2 |
3 |
49405? |
|
|
11-1/4° |
7/8 |
1 |
1 |
1/2 |
2-7/8 |
49407 |
|
|
15° |
7/8 |
3/4 |
25/32 |
1/4 |
2-1/4 |
49408 |
|
|
22-1/2° |
1-1/4 |
15/16 |
7/8 |
1/2 |
2-7/8 |
49410 |
|
|
30° |
1-3/8 |
13/16 |
7/8 |
1/4 |
2-1/4 |
49412 |
|
|
30° |
1-3/8 |
13/16 |
7/8 |
1/2 |
2-3/4 |
49414 |
|
16! |
60° |
2-1/2 |
11/16 |
1-1/8 |
1/2 |
2-3/4 |
49416? |
Replacement bearings: #’s 49400, 49402 & 49412 use #47704.
#49405 use #47710. All other tools use #47706.
NOTES: * 49404 will completely chamfer 3/4" material.
† 49406 will completely chamfer 1" material.
? Not
for use in handheld router!
Warning: Maximum RPM
16! = 16,000
NOTE: USE IN A TABLE MOUNTED
ROUTER. NOT FOR USE IN A HAND HELD ROUTER!
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 49400 |
