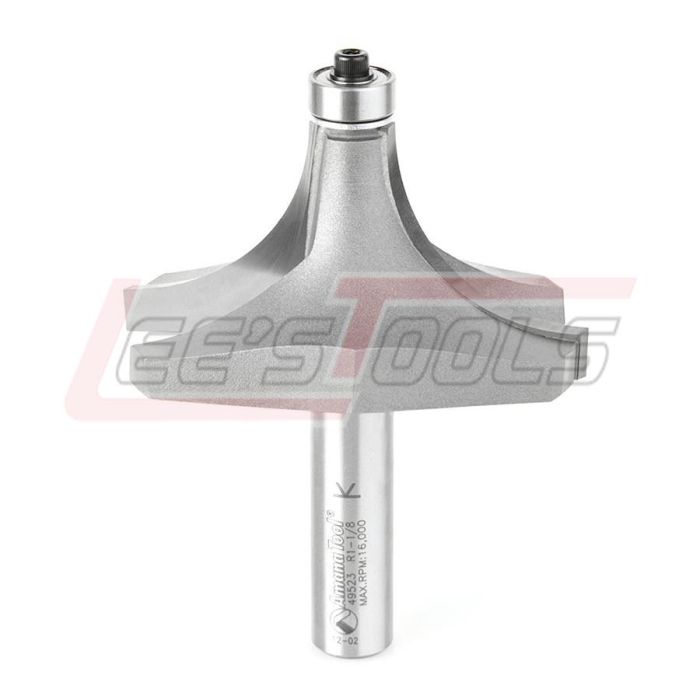

AMANA TOOL 49524 CORNER ROUND 1-1/4 RAD 1/2 SK
$145.24
In stock
SKU
35005
Corner Rounding Router Bits
2 Flute with Ball Bearing Guide
The basic edge-forming bit, the corner-rounding bit rounds
an edge to a given radius. The tool is shouldered to cut a fillet. The cut can
be used to ease edges, as a simple profile, or as a part of a complex one. Also
known as roundover, rounding over, and quarter-round. If a smaller pilot bearing
is used, a second shoulder can be produced, in effect making the bit a beading
bit.
|
--- |
D |
R |
B |
d |
L |
Tool No. |
|
--- |
5/8 |
1/16 |
5/16 |
1/4 |
1-3/4 |
49492 |
|
--- |
5/8 |
1/16 |
5/16 |
1/2 |
2-1/4 |
49494 |
|
--- |
3/4 |
1/8 |
3/8 |
1/4 |
2 |
49496 |
|
--- |
1 |
1/8 |
3/8 |
1/4 |
2-3/16 |
RC-49496+ |
|
--- |
3/4 |
1/8 |
3/8 |
1/2 |
2-5/16 |
49498 |
|
--- |
13/16 |
5/32 |
3/8 |
1/4 |
2 |
49499 |
|
--- |
13/16 |
5/32 |
3/8 |
1/2 |
2-1/4 |
49501 |
|
--- |
7/8 |
3/16 |
1/2 |
1/4 |
2 |
49500 |
|
--- |
7/8 |
3/16 |
1/2 |
1/2 |
2-7/16 |
49502 |
|
--- |
1 |
1/4 |
1/2 |
1/4 |
2 |
49504 |
|
--- |
1 |
1/4 |
1/2 |
1/4 |
2-1/16 |
RC-49504++ |
|
--- |
1 |
1/4 |
1/2 |
1/2 |
2-7/16 |
49506 |
|
--- |
1-1/8 |
5/16 |
1/2 |
1/4 |
2-1/16 |
49508 |
|
--- |
1-1/8 |
5/16 |
1/2 |
1/2 |
2-7/16 |
49510 |
|
--- |
1-1/4 |
3/8 |
5/8 |
1/4 |
2-3/16 |
49512 |
|
--- |
1-1/4 |
3/8 |
5/8 |
1/2 |
2-9/16 |
49514 |
|
--- |
1-3/8 |
7/16 |
5/8 |
1/2 |
2-9/16 |
49515 |
|
--- |
1-1/2 |
1/2 |
3/4 |
1/4 |
2-1/4 |
49516 |
|
--- |
1-1/2 |
1/2 |
3/4 |
1/2 |
2-5/8 |
49518 |
|
--- |
1-5/8 |
9/16 |
3/4 |
1/2 |
2-5/8 |
49517 |
|
14! |
1-3/4 |
5/8 |
7/8 |
1/2 |
2-3/4 |
49519 |
|
14! |
2 |
3/4 |
1 |
1/2 |
2-7/8 |
49520 |
|
14! |
2-1/4 |
7/8 |
1-1/4 |
1/2 |
3-1/16 |
49521 |
|
14! |
2-1/2 |
1 |
1-1/4 |
1/2 |
3-3/16 |
*49522? |
|
10! |
2-3/4 |
1-1/8 |
1-3/8 |
1/2 |
3-1/4 |
*49523? |
|
10! |
3 |
1-1/4 |
1-1/2 |
1/2 |
3-1/4 |
*49524? |
|
10! |
3-1/2 |
1-1/2 |
1-3/4 |
1/2 |
3-5/8 |
*49526? |
*Not guaranteed due to extreme diameter and radius. For
best results it is recommended to use a smaller radius bit or chamfer the
material prior to using these large radius tools. Tool life will be prolonged
and a smoother finish will result.
Replacement bearing #47706.
+Replacement Knife #RCK-268 (2 Required) ++Replacement
Knife #RCK-272 (2 Required)
Warning:
Maximum RPM 10!=
10,000;
14!= 14,000
?USE
IN A TABLE MOUNTED ROUTER. NOT FOR USE IN A HAND HELD ROUTER!
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the
maximum RPM shown for the particular tool you are using. Max RPM for symmetrical
tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to
laser etching on router bit shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 49524 |
