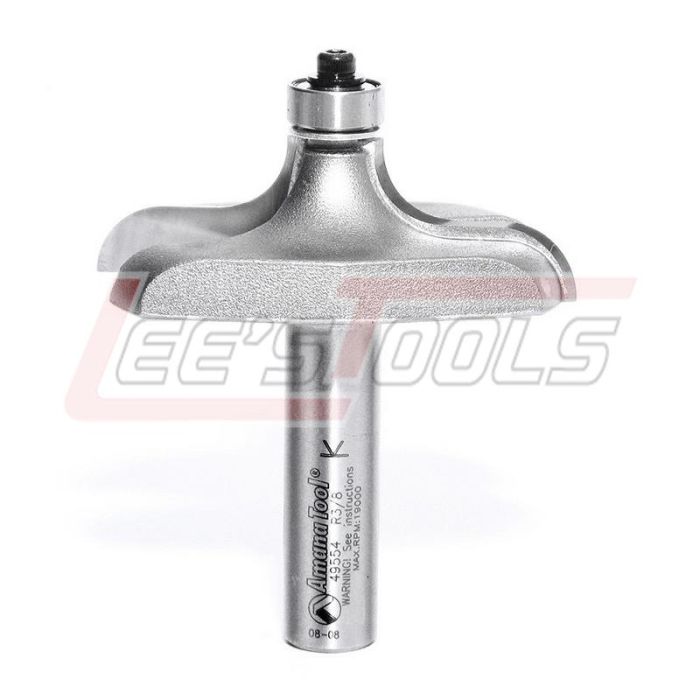

AMANA TOOL 49554 TABLE EDGE TRADITIONAL 1/2 SHK
$93.98
In stock
SKU
35020
Handrail / Table Edge Router Bits
2 Flute With Ball Bearing Guide
These special router bits are used for cutting table top
edges or used with handrail side profile bits.
Warning: Maximum RPM
16! = 16,000
A= Standard 1/2" bearing #47706 (included).
B= Optional 3/8" bearing #47702 (order separately).
|
|
D
|
R1 |
R2 |
B |
d |
L |
Tool No. |
|
|
1-3/16 |
15/32 |
--- |
3/8 |
1/4 |
1-3/4 |
49540 |
|
16! |
2-3/4 |
1-3/4 |
--- |
5/8 |
1/2 |
2-1/2 |
49550 |
|
16! |
2-1/2 |
3/8 |
--- |
3/4 |
1/2 |
2-3/4 |
49554 |
|
16! |
2-1/2 |
3/8 |
1/4 |
3/4 |
1/2 |
2-3/4 |
49556 |
|
16! |
2-9/16 |
11/64 |
1-3/32 |
3/4 |
1/2 |
2-3/4 |
49560 |
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on router bit
shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 49554 |
