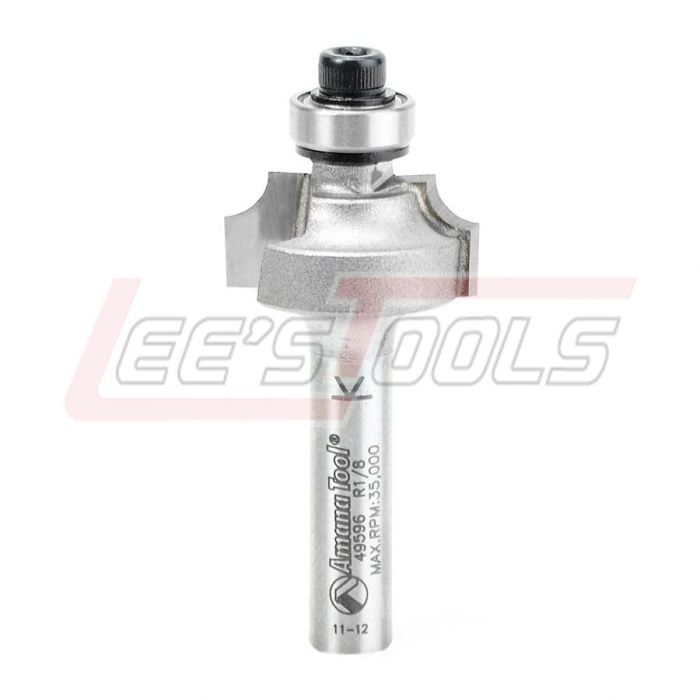

AMANA TOOL 49596 BEADING BIT 1/8 RAD 1/4 SHK
$26.29
In stock
SKU
35035
Beading Router Bits with Ball Bearing Guide
2 Flute with Ball Bearing Guide
Cut a quarter-round shape bounded by fillets,
known as a bead, is produced in one pass by this bit. The width of one fillet is
set by the pilot bearing size, while the other is controlled by the depth of
cut. A beading bit can be transformed into a corner rounding bit by changing the
bearing (and vice versa).
|
|
D |
R |
B |
d |
L |
Tool No. |
|
|
5/8 |
1/16 |
5/16 |
1/4 |
1-3/4 |
49592 |
|
|
3/4 |
1/8 |
3/8 |
1/4 |
2 |
49596 |
|
|
3/4 |
1/8 |
3/8 |
1/2 |
2-5/16 |
49598 |
|
|
3/4 |
5/32 |
3/8 |
1/4 |
2-1/4 |
49599 |
|
|
3/4 |
5/32 |
3/8 |
1/2 |
2-1/2 |
49601 |
|
|
7/8 |
3/16 |
1/2 |
1/4 |
2 |
49600 |
|
|
7/8 |
3/16 |
1/2 |
1/2 |
2-7/16 |
49602 |
|
|
1 |
1/4 |
1/2 |
1/4 |
2 |
49604 |
|
|
1 |
1/4 |
1/2 |
1/2 |
2-7/16 |
49606 |
|
|
1-1/8 |
5/16 |
1/2 |
1/4 |
2-1/16 |
49608 |
|
|
1-1/8 |
5/16 |
1/2 |
1/2 |
2-7/16 |
49610 |
|
|
1-1/4 |
3/8 |
5/8 |
1/4 |
2-3/16 |
49612 |
|
|
1-1/4 |
3/8 |
5/8 |
1/2 |
2-9/16 |
49614 |
|
|
1-3/8 |
7/16 |
5/8 |
1/2 |
2-9/16 |
49615 |
|
|
1-1/2 |
1/2 |
3/4 |
1/4 |
2-1/4 |
49616 |
|
|
1-1/2 |
1/2 |
3/4 |
1/2 |
2-5/8 |
49618 |
|
|
1-5/8 |
9/16 |
3/4 |
1/2 |
2-5/8 |
49617 |
|
14! |
1-3/4 |
5/8 |
7/8 |
1/2 |
2-3/4 |
49619 |
|
14! |
2 |
3/4 |
1 |
1/2 |
2-7/8 |
49620 |
|
14! |
2-1/4 |
7/8 |
1-1/4 |
1/2 |
3-1/16 |
49621 |
|
14! |
2-1/2 |
1 |
1-1/4 |
1/2 |
3-3/16 |
*49622? |
Warning:
Maximum RPM 14!=
14,000
*Not guaranteed due to extreme diameter and
radius. For best results it is recommended to use a smaller radius bit or
chamfer the material prior to using these large radius tools. Tool life will be
prolonged and a smoother finish will result.
Replacement bearing #47702.
?USE IN A TABLE MOUNTED ROUTER. NOT FOR USE IN A
HAND HELD ROUTER!
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the
maximum RPM shown for the particular tool you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please
also refer to laser etching on router bit shank for most updated RPM speed
rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 49596 |
