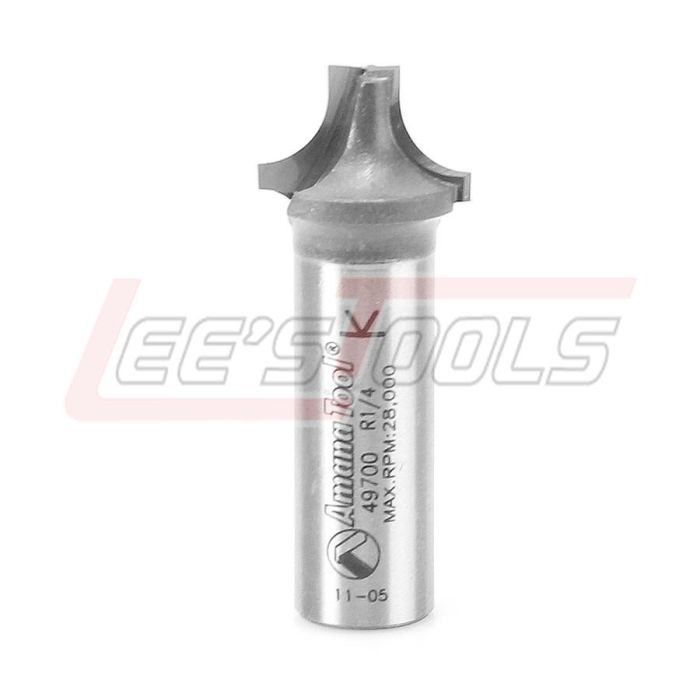

AMANA TOOL 49700 PLUNGE ROUND 1/4 RAD 1/2 SHANK
$51.11
In stock
SKU
35085
Round Over
RouterBits
2 Flute
This bit creates a
flat-bottom groove between twoquarter-round shapes. Short vertical walls
extending below the radius lendextra depth to the appearance. Depending upon the
cut depth adjustment, theradii can be flush with the work surface or recessed.
The profile can be formedon an edge using an edge guide or, on the router table
using a fence.
|
øD |
D1 |
R |
B |
B1 |
ød |
L |
Tool No. |
|
|
3/4 |
.240 |
1/4 |
1/2 |
3/8 |
1/2 |
2 |
49700 |
|
|
.615 |
.240 |
3/16 |
1/2 |
3/16 |
1/2 |
2-1/8 |
49701 |
|
|
7/8 |
.245 |
5/16 |
9/16 |
7/16 |
1/2 |
2-1/16 |
49702 |
|
|
1 |
.250 |
3/8 |
5/8 |
15/32 |
1/2 |
2-1/8 |
49704 |
|
|
1-3/8 |
.363 |
1/2 |
1 |
3/4 |
1/2 |
2-1/2 |
49706 |
|
|
14! |
1-3/4 |
.500 |
5/8 |
1-1/4 |
1 |
1/2 |
2-3/4 |
49708* |
|
14! |
2 |
.500 |
3/4 |
1-7/16 |
1-1/8 |
1/2 |
2-15/16 |
49710* |
Warning: Maximum RPM 14! = 14,000
NOTE: USE IN A TABLE MOUNTED ROUTER. NOT FOR USEIN
A HAND HELD ROUTER!
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the
maximum RPM shown for the particular tool you are using. Max RPM for symmetrical
tool only!
No exceda la
maxima velocidad (RPM) indicada para cada herramienta. Máximo RPM para la
herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than
50) |
28,000 |
|
2" - 2-3/8"
(50-60mm) |
22,000 |
|
2-3/8" - 2-3/4"
(60-70mm) |
19,000 |
|
2-3/4" - 3-1/4"
(70-80mm) |
16,000 |
|
3-1/4" - 3-5/8"
(80-90mm) |
15,000 |
|
3-5/8" <
(90-100mm) |
13,000 |
Note:
Please also refer to laser etching on router
bit shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 49700 |
