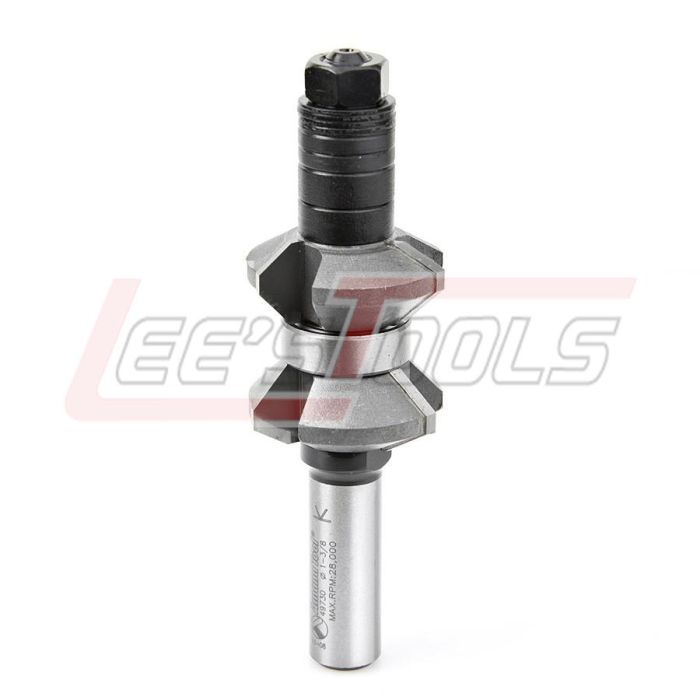

AMANA TOOL 49730 VARIABLE CHAMFER BIT ASSEMBLY
$158.63
In stock
SKU
35098
Variable Double Chamfer Assembly
3 Wing
with Ball Bearing Guide
Chamfer both
corners of an edge in one pass with this assembly. Switch from 30° or 45°
chamfers by switching cutter positions on the arbor. Interchangeable spacers
adjust assembly to accommodate different stock thicknesses. The assembly
includes the arbor, a pair of multi-angle cutters, pilot bearing, spacers, and
shims. Replacement parts are available separately. For best results use in a
router table!
Key Specifications
|
D |
a°1 |
a°2 |
B1 |
d |
L |
Tool No. |
|
1-3/8 |
30° |
45° |
9/16 |
1/2 |
4-1/4 |
49730 |
Replacement
bearings: #’s 49400, 49402 & 49412 use #47704.
#49405 use #47710.
All other tools use #47706.
NOTES: * 49404
will completely chamfer 3/4" material.
† 49406 will
completely chamfer 1" material.
? Not for use in
handheld router!
Not for Use in a
hand-held router
NOTE: Items marked
with a * USE IN A TABLE-MOUNTED ROUTER. NOT FOR USE IN A HANDHELD ROUTER!
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on router bit
shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 49730 |
