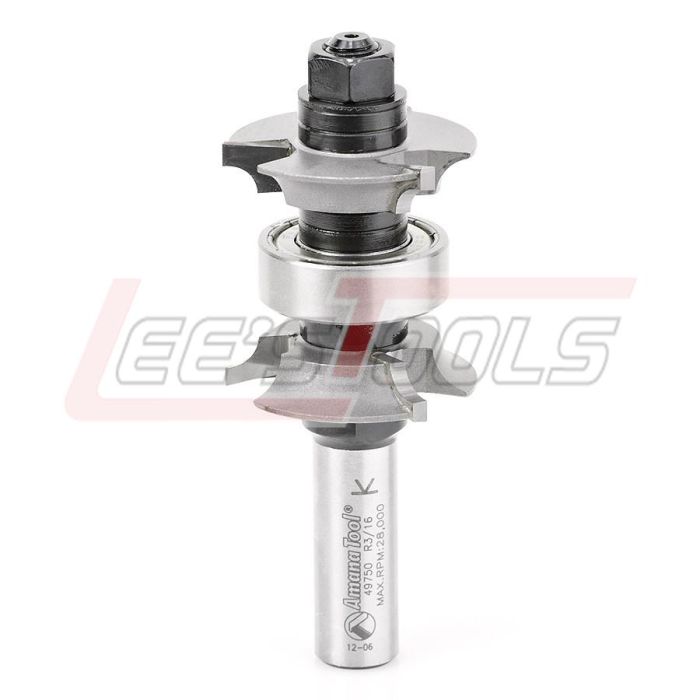

AMANA TOOL 49750 VARIABLE CORNER ROUND 3/16 RAD
$77.11
In stock
SKU
35102
Double Roundover Adjustable 'Easing' Assembly
3 Wing with Ball Bearing Guide
Roundover both the top and bottom edges in just one pass
with this assembly. Interchangeable spacers alter cutter spacing to accommodate
different stock thicknesses up to 1-1/4". The assembly includes the arbor, a
pair of multi-angle cutters, pilot bearing, spacers, and shims. Replacement
parts are available separately.
|
D |
R |
B |
B1 |
d |
L |
Tool No. |
|
1-1/2 |
3/16 |
*3/4 to 1-1/4 |
19/64 |
1/2 |
3-5/8 |
49750 |
|
1-19/32 |
1/4 |
*13/16 to 1-11/32 |
3/8 |
1/2 |
3-5/8 |
49755 |
|
1-55/64 |
3/8 |
*1 to 1-1/4 |
33/64 |
1/2 |
3-5/8 |
49760 |
|
Replacement Parts |
Quantity Required |
||||||||
|
Description |
49750 |
49760 |
Order # |
||||||
|
Top 3/16" radius cutter (R/H) |
1 |
- |
49752 |
||||||
|
Bottom 3/16" radius cutter (L/H) |
1 |
- |
49754 |
||||||
|
Top 1/4" radius cutter (R/H) |
- |
- |
49757 |
||||||
|
Bottom 1/4" radius cutter (L/H) |
- |
- |
49759 |
||||||
|
Top 3/8" radius cutter (R/H) |
- |
1 |
49761 |
||||||
|
Bottom 3/8" radius cutter (L/H) |
- |
1 |
49763 |
||||||
|
Ball Bearing Guide, 8mm x 28mm |
1 |
1 |
47736 |
||||||
|
1/2" shank arbor with nut |
1 |
1 |
47620 |
||||||
|
3.0mm spacer |
2 |
2 |
