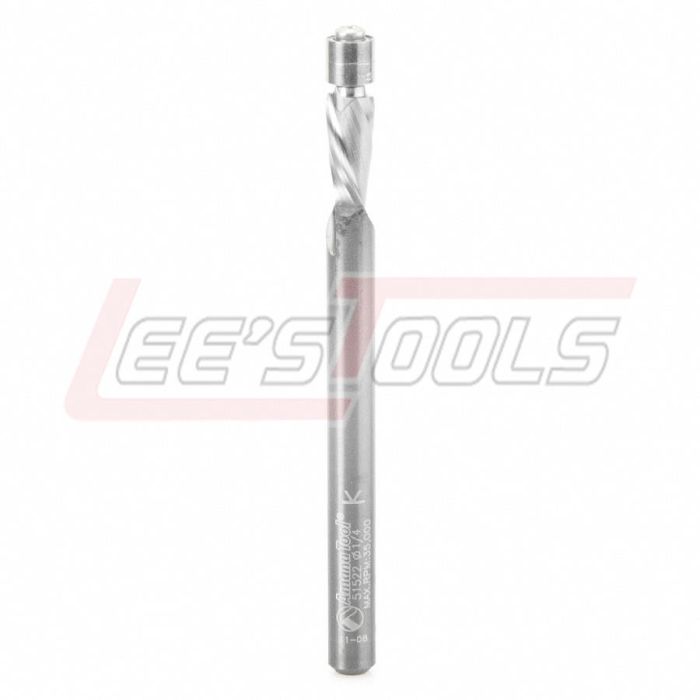

AMANA TOOL 51522 ALUMINUM FLUSH TRIM 1/4 D DOWN
$90.19
Out of stock
SKU
35234
Aluminum Flush Trim Spiral Solid Carbide Bits
2 Flute with Ball Bearing Guide
This flush trim router bit was designed to eject chips UP for clean
cuts in aluminum. It was specially designed for routing aluminum using a
template . This router bit features a
special carbide grade to perform quality cuts in aluminum.
|
Ød |
B |
ød |
L |
Up-Cut Tool No. |
Down-Cut Tool No. |
|
1/4 |
1-1/4 |
1/4 |
3-5/16 |
51420 |
51520 |
|
1/4 |
1/2 |
1/4 |
2-1/2 |
51422 |
51522 |
Bearings=
two #47723
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool you are
using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note:
Please also refer to laser etching on router bit shank for most updated RPM
speed rating.
| Availability | Out of Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 51522 |
