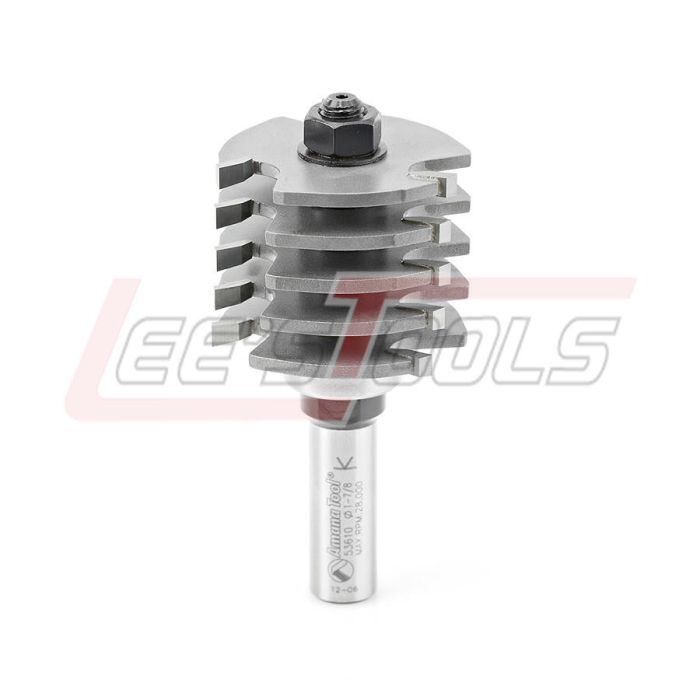

AMANA TOOL 53610 BOX JOINT SET 1/2 SHANK
$136.84
In stock
SKU
35346
Box Joint Router Bit
3-Wing
With Ball Bearing Guide
'Box Joint' set
containing 3-wing slotting cutters and spacers for producing jewelry boxes,
drawers, etc. Complete with cutters, spacers, arbor and ball bearing to achieve
1/2" depth of cut. Recommended stock thickness (height: 3/4" though 1-5/8"). For
material over 1-5/8", two passes will accomplish joints up to 3".
Key Specifications
|
D |
B |
B1 |
d |
L |
Tool No. |
|
|
13!
|
1-7/8 |
1-3/8 |
5/32 |
1/2 |
3-3/4 |
53610 |
Warning: Maximum RPM 13!=13,000
Individual Box Joint Router Bit Components
|
Description |
Order # |
|
5/32" 3-wing cutters (5 required) |
53207 |
|
1/2" shank arbor with nut |
47620 |
|
Steel ball bearing guide (1/2" depth of cut) |
47708 |
|
5.5MM spacers (4 required) |
55369 |
|
1.0MM spacers (2 required) |
55402 |
|
.5MM shim (1 required) |
55404 |
NOTE: USE IN A TABLE MOUNTED ROUTER. NOT FOR USE IN A HAND
HELD ROUTER!
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on router bit
shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 53610 |
