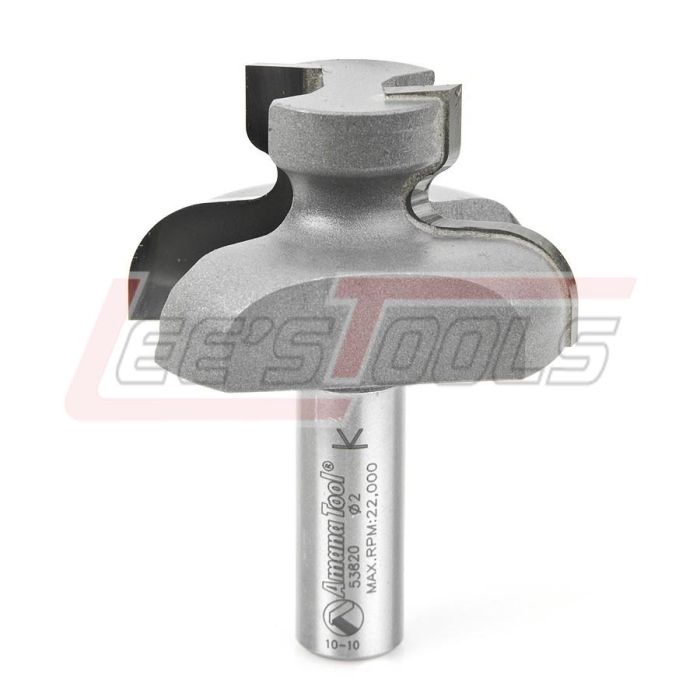

AMANA TOOL 53820 DOOR EDGE DETAIL 1/2 SHANK
$152.18
In stock
SKU
35366
Door Edge Detail Router Bits
Use these bits to shape the edges of cabinet doors. Style
#53820 also eliminates the need for a pull to create a clean, uncluttered look.
|
øD |
D1 |
D2 |
R |
R1 |
B |
ød |
L |
Tool No. |
|
2 |
23/32 |
31/32 |
3/8 |
1/8 |
1-3/16 |
1/2 |
2-1/2 |
53820 |
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on router bit
shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 53820 |
