AMANA TOOL 54119 COVE RAISED PANEL 1/2 SHANK
$130.95
In stock
SKU
35391

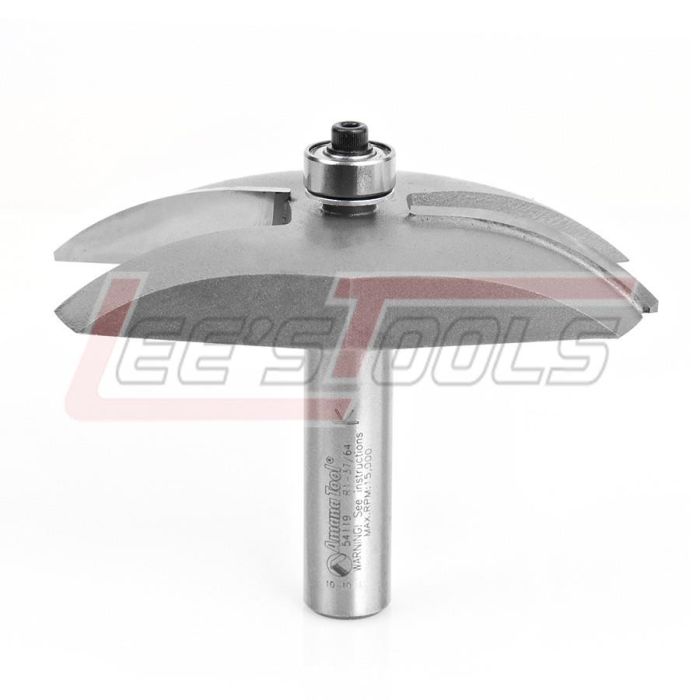

Cove Raised Panel Router Bit
2 Flute
|
*'A' Reveal |
R |
D |
B |
d |
L |
Tool No. |
|
*1-7/16 |
1-9/16 |
3-3/8 |
1/2 |
1/2 |
2-3/8 |
54119 |
·
*Reveal reflects the total length of cut.
·
Replacement Bearing: 47706
Warning: Maximum RPM
14! = 14,000
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on router bit
shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 54119 |
